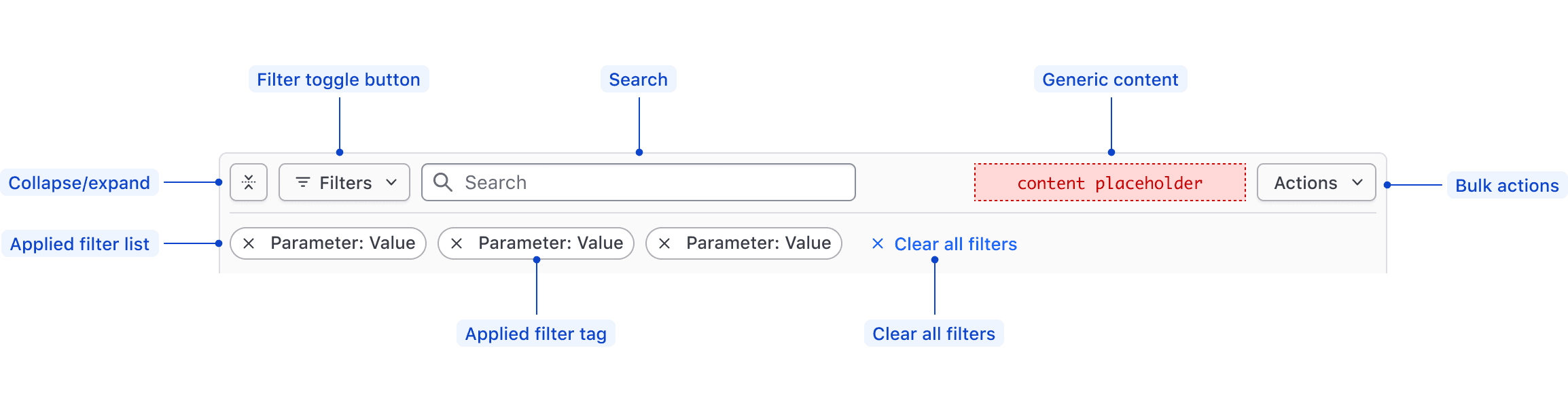

Filter Bar

The Filter Bar is used to apply and display filters to a data set. It is most often used with the Advanced Table, but is flexible enough to support the standard Table, lists, or a grid of cards.

Usage

When to use

• When displaying filters for a data set.
• As a replacement for the HDS Filter pattern.

When not to use

• For complex query builder features.

Type

The Filter Bar supports two visual presentations, attached and standalone, to be used in different contexts and with different types of data sets.

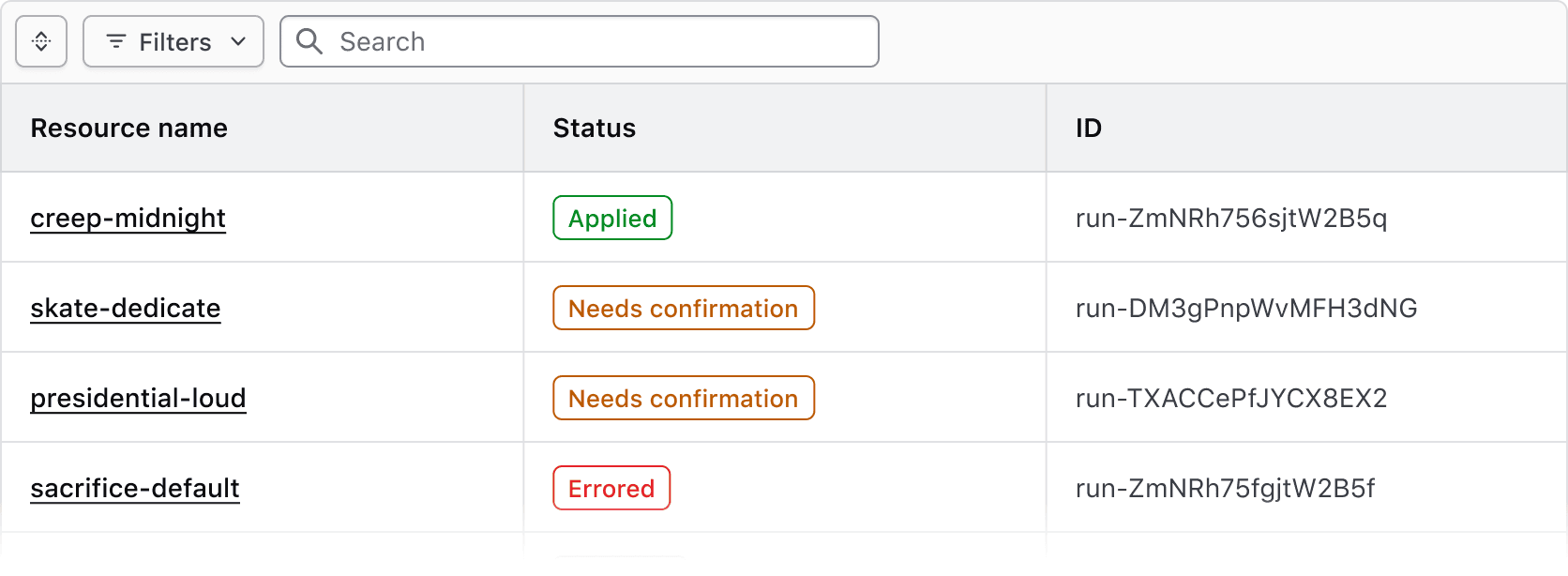

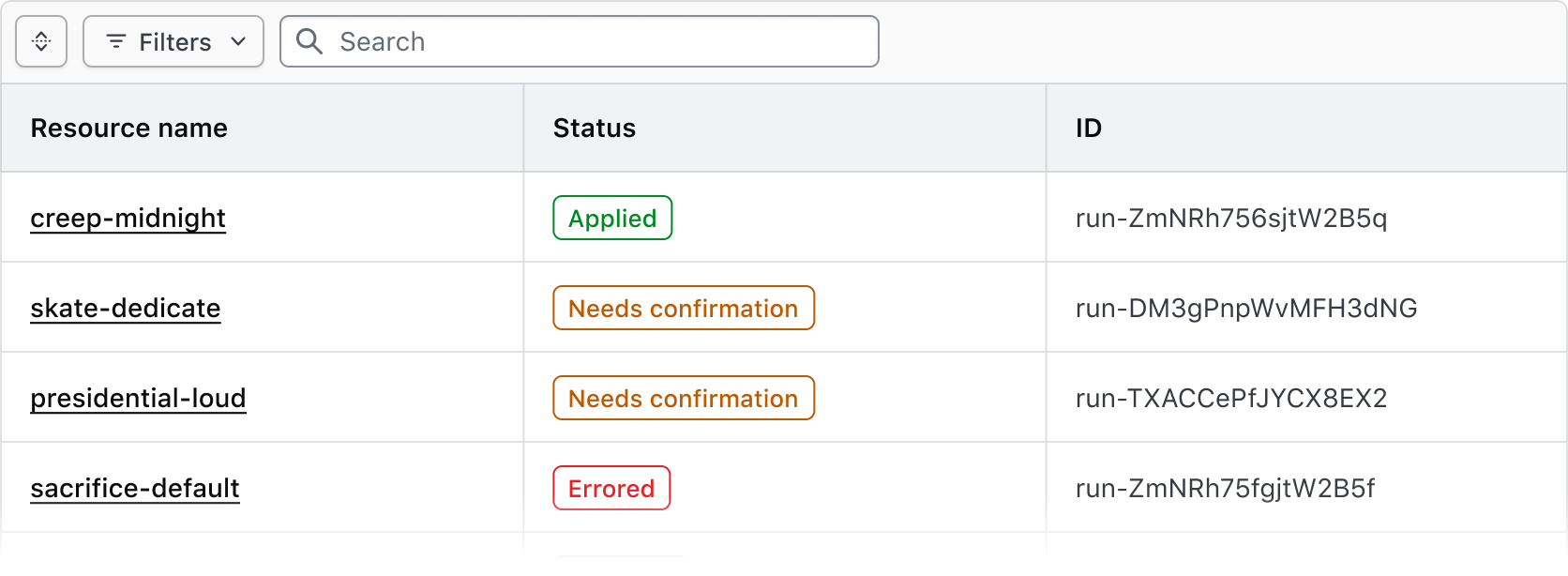

Attached

Use the attached variant with the Advanced Table to clearly associate the Filter Bar with the rendered data set and the table.

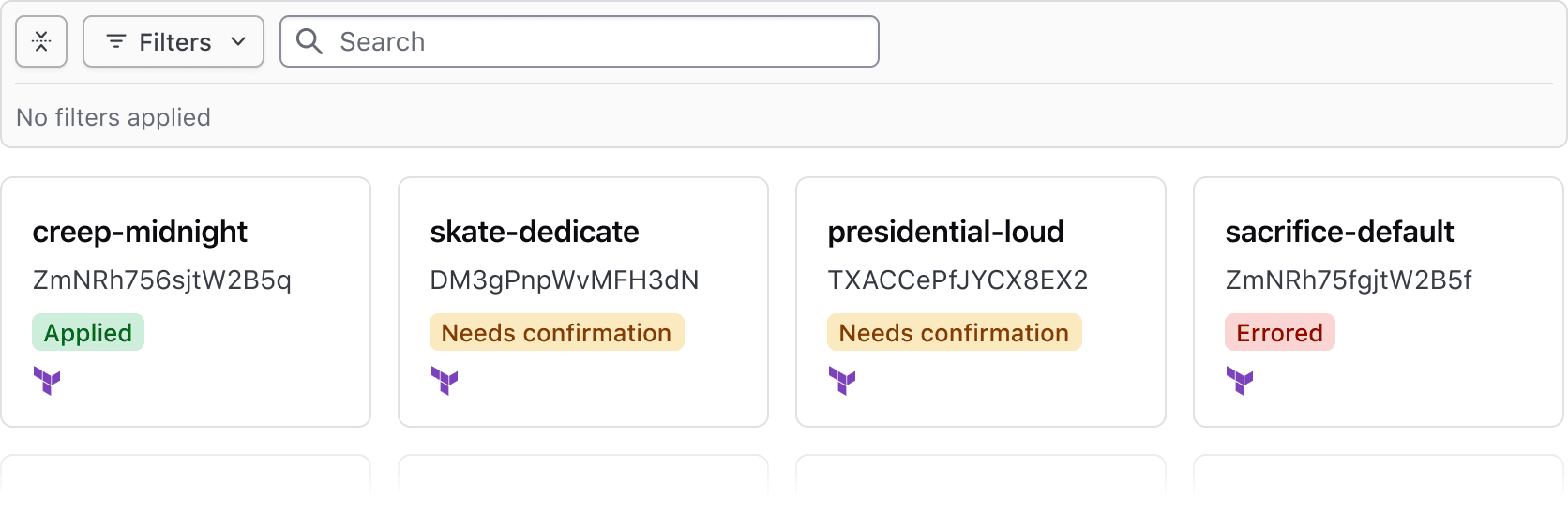

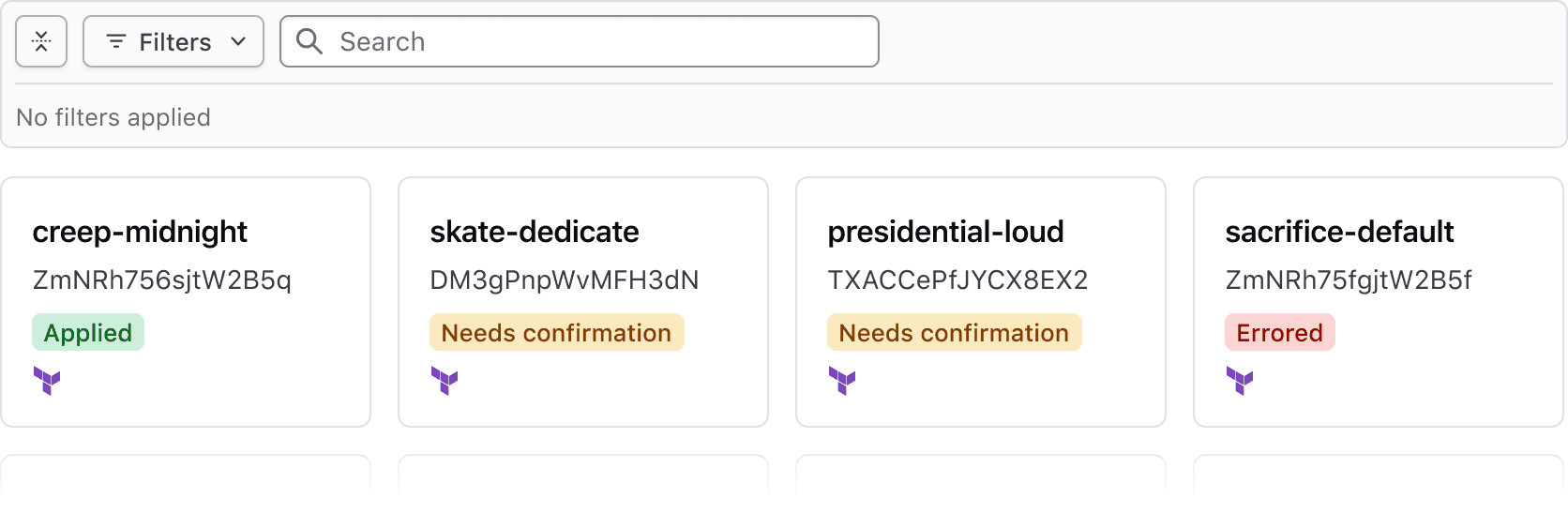

Standalone

Use the standalone variant when a data set is rendered in formats other than the Advanced Table, e.g., a standard Table, list, or grid of cards.

Applying Filters

Filters can be applied on a per-filter basis or via live filtering.

• Per-filter: filters are applied when the user confirms their selection with the "Apply filters" button in the dropdown. This is the most common method.
• Live filtering: filters are applied immediately upon selection.

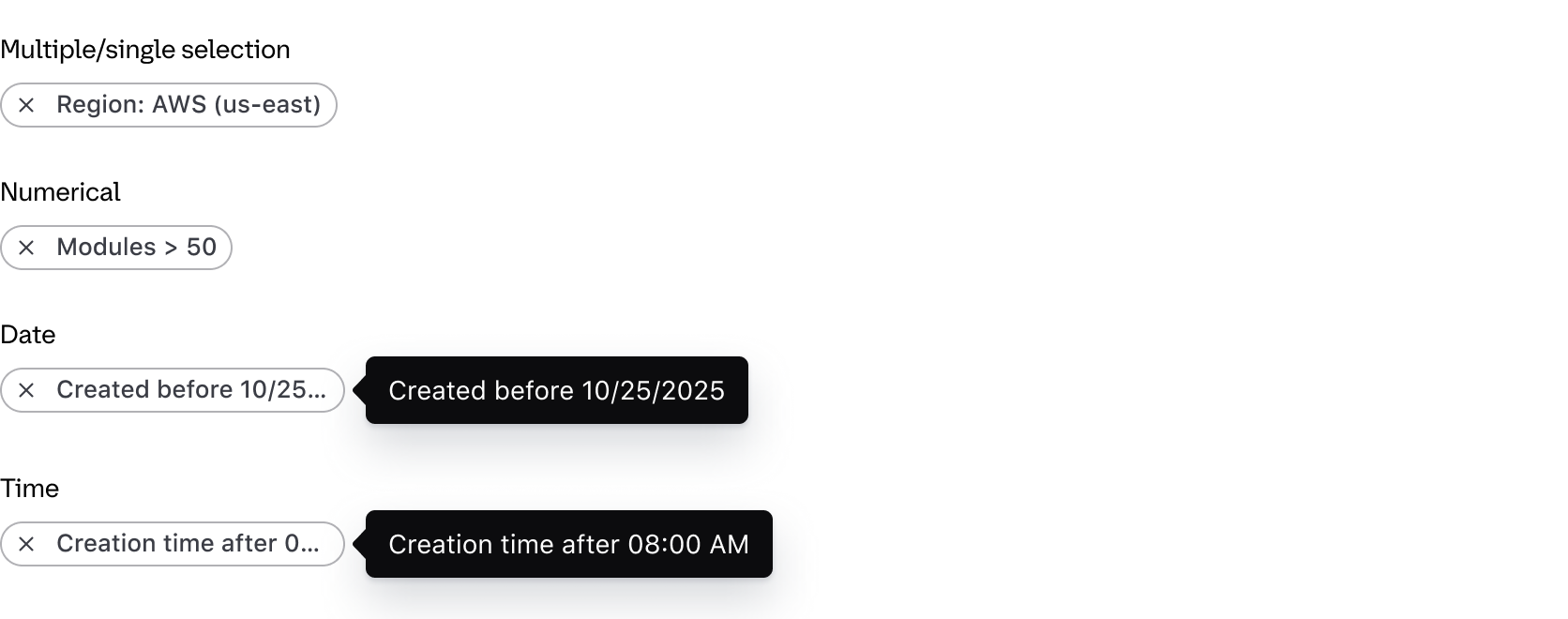

Applied filters

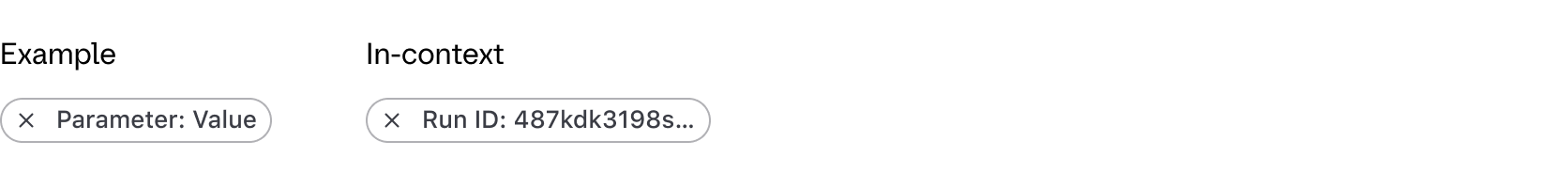

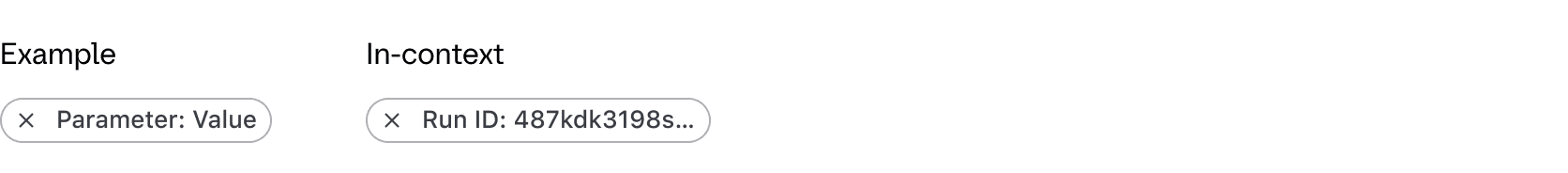

Applied filters are represented by a Tag displaying the filter parameter (the category or column the filter corresponds to) and the filter value (corresponding with the specific cell content).

By default, the text rendered within the Tag uses a standardized format depending on the type of filter:

• Single and multiple selection filters group the parameter and value using a colon, e.g., "Region: AWS (us-east)"
• Numerical filters group the parameter and value with an operator symbols, e.g., "Modules > 50"
• Date and time filters group the parameter and value with natural language, e.g., "Created before 12:00 PM"

If necessary, the text can be overridden within the Tag. This can be useful if the parameter label is an irregular plural, if the parameter reads more naturally with certain punctuation or grammar, or for product-specific reasons.

The Tag component truncates at roughly 20 characters.

Expand & collapse

The applied filters section can be collapsed to simplify the UI or expanded to bring focus to the data. This is helpful when many filters are applied or when the data set is complex.

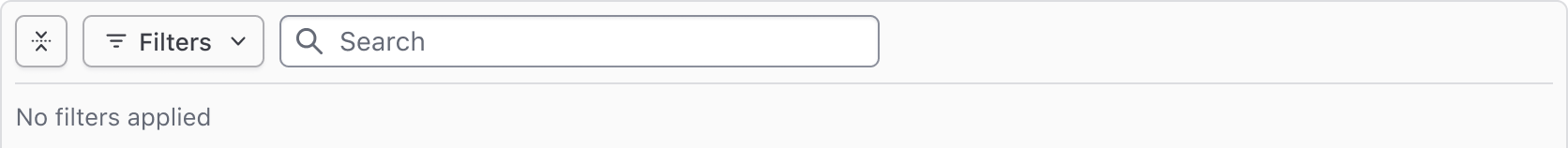

When no filters are applied, the applied filters section is collapsed by default and will display an empty state message when expanded.

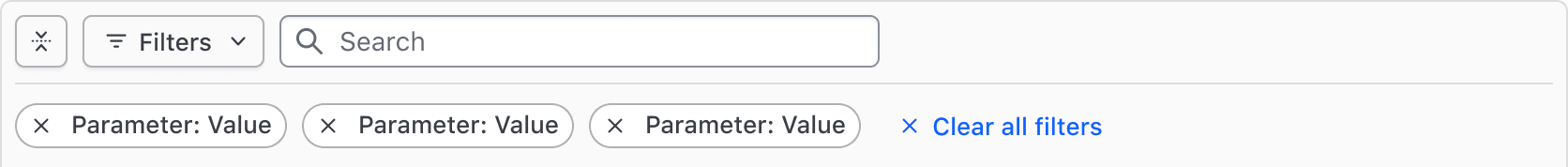

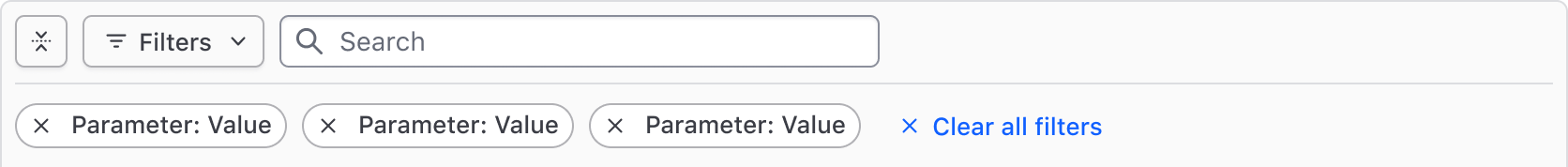

When one or more filters are applied, the Filter Bar is expanded by default.

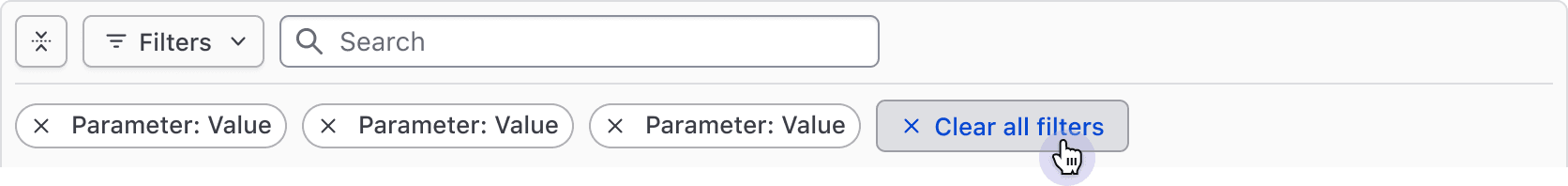

Clearing filters

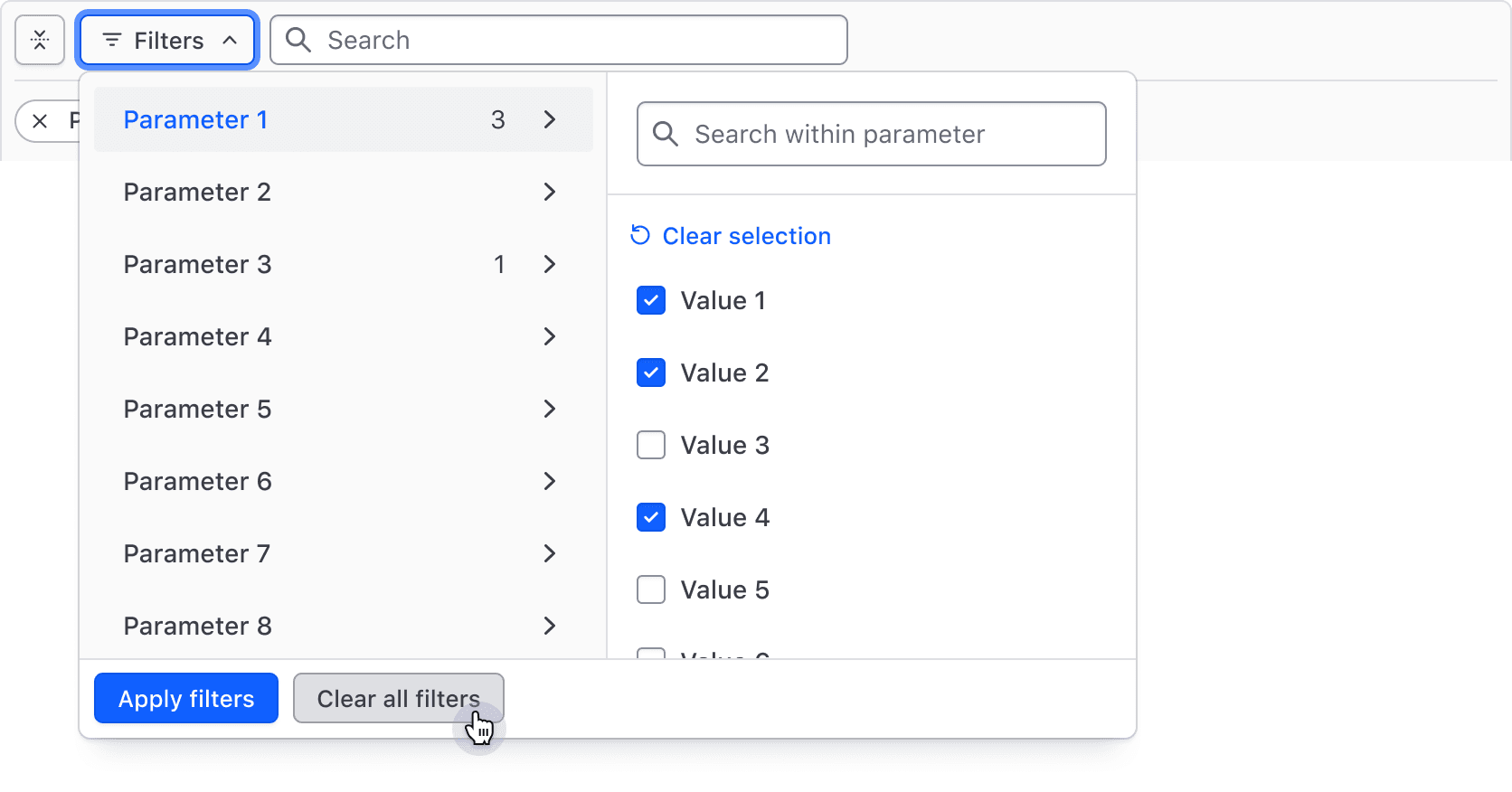

All filters can be cleared in bulk using the "Clear All" button near the applied filters or in the dropdown footer.

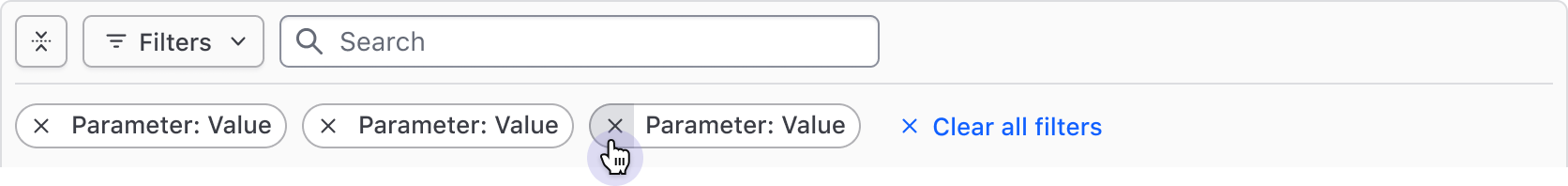

Filters can also be cleared individually via the Tag's dismiss button.

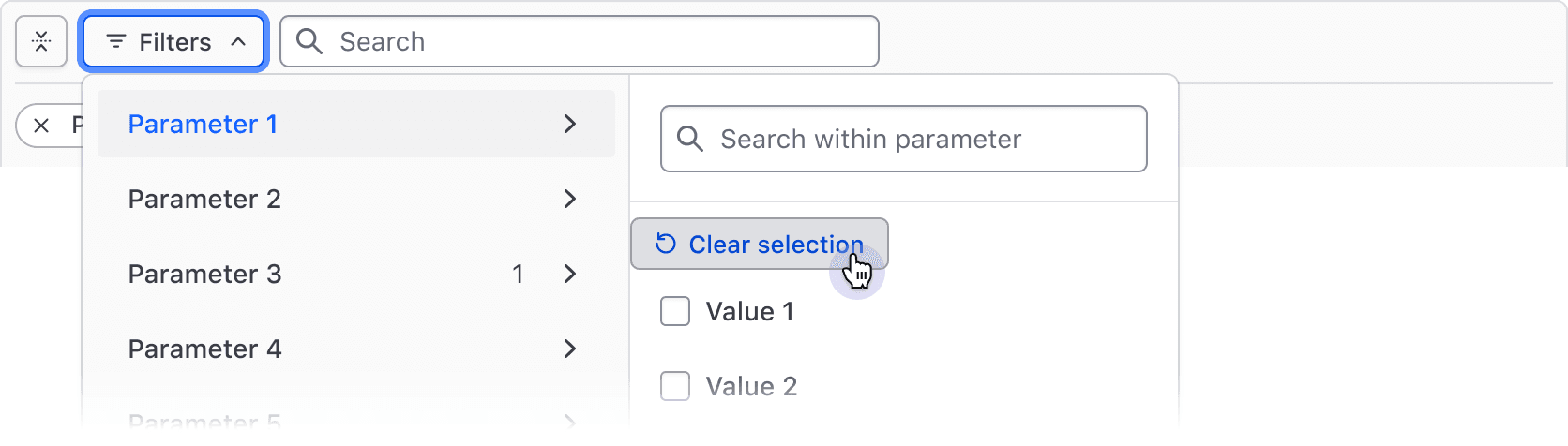

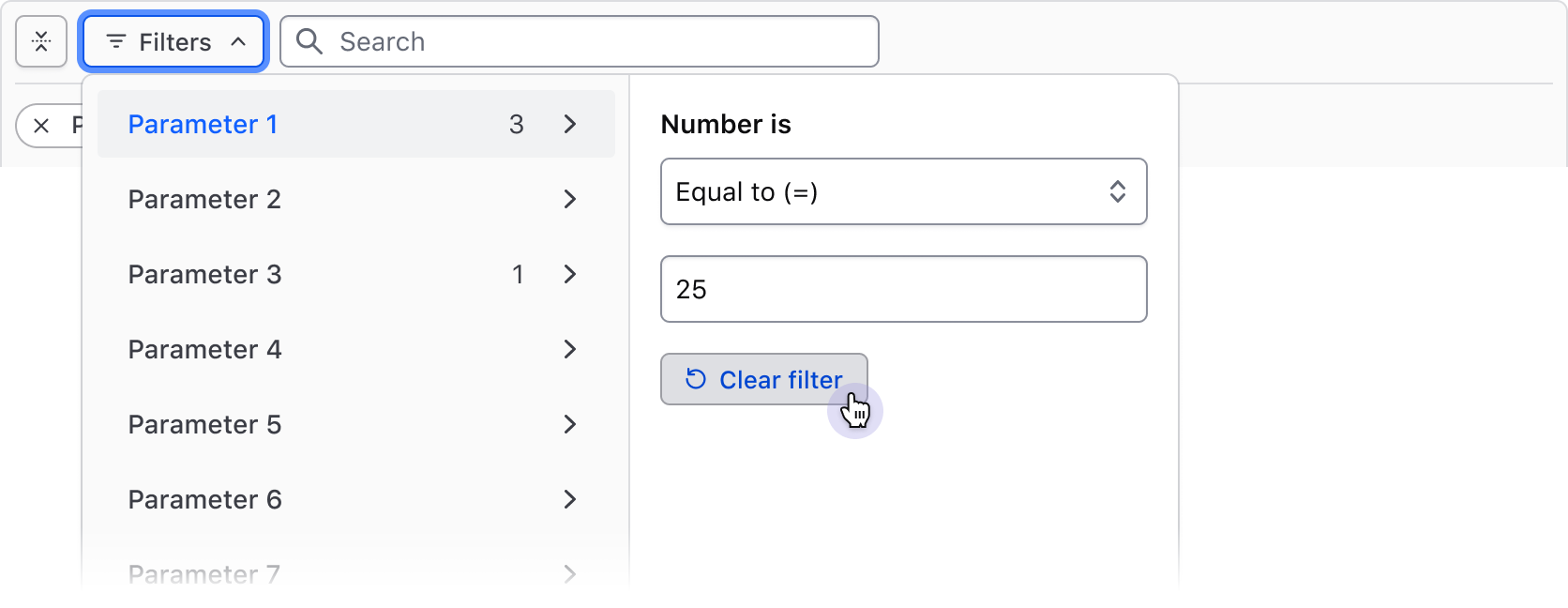

When multiple filter values are selected for a single parameter or input fields define the filter, the "Clear selection" button in the dropdown deselects all values for that parameter.

Search

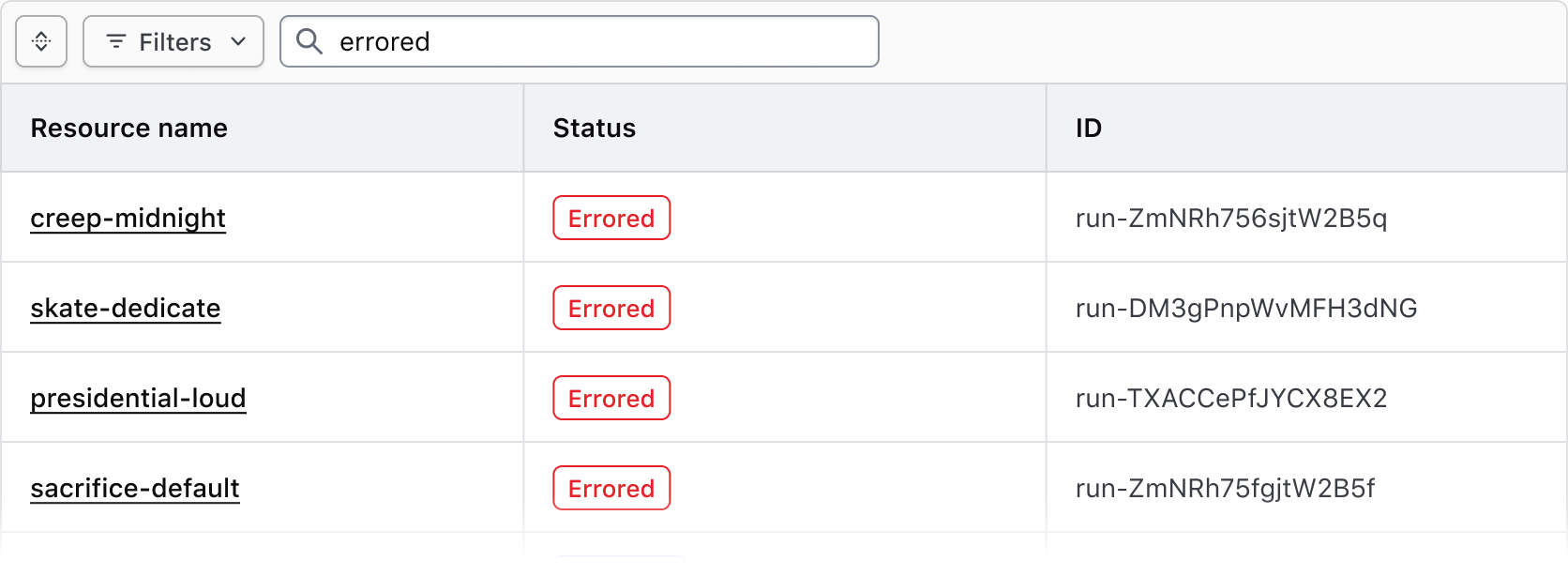

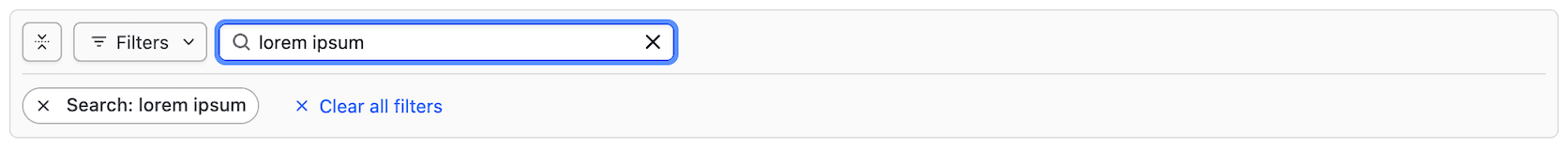

Use the search input to apply a broad text filter across the entire data set.

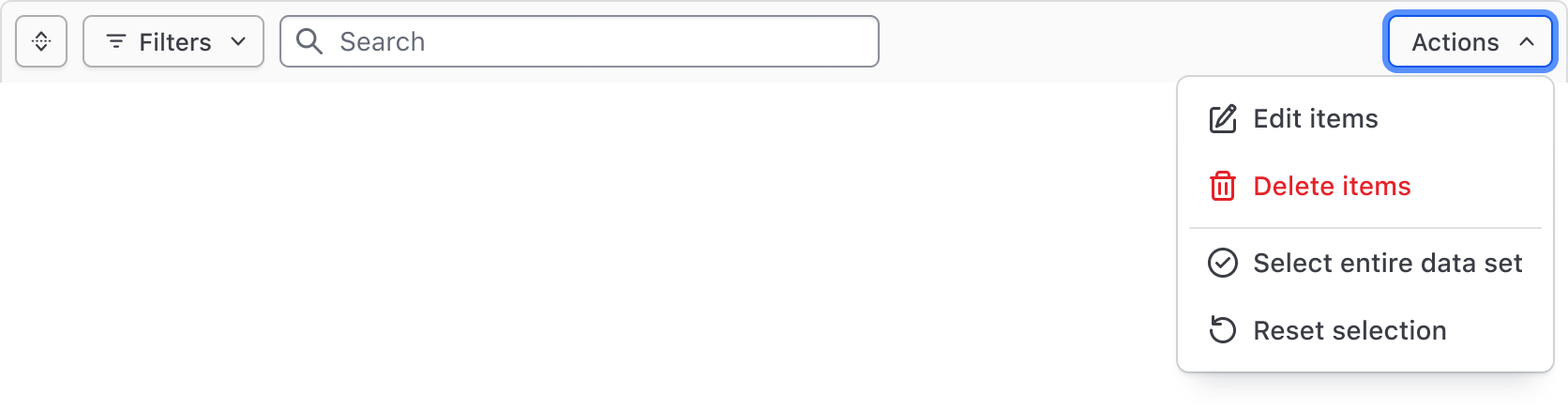

Bulk actions

Bulk actions, corresponding to our recommendations for multi-select, can be used to perform actions across multiple results, such as editing, deleting, and selecting subsets of the data set.

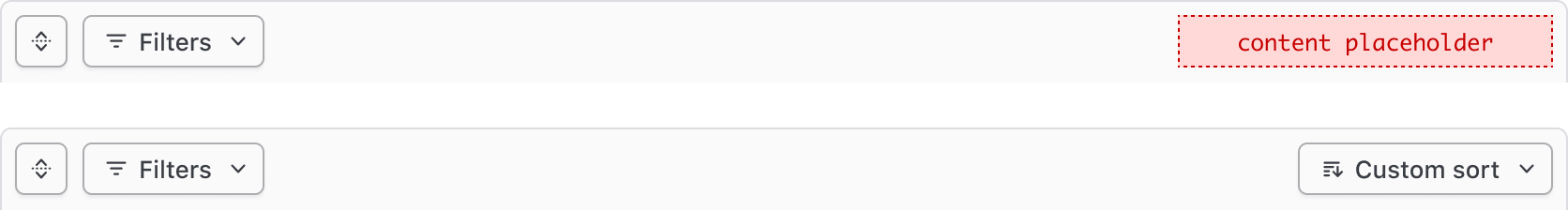

Generic content

Custom functionality can be added to or replace the Bulk action dropdown. We recommend limiting this to actions or information that directly tie back to the data set.

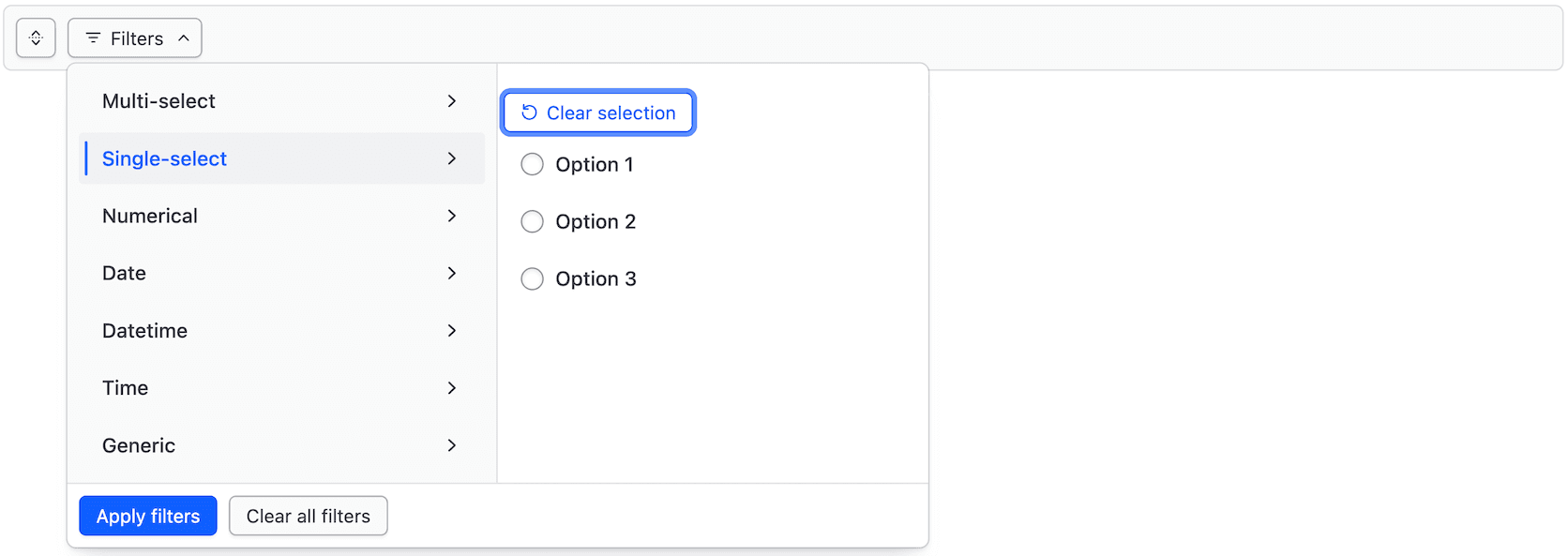

Filter dropdown

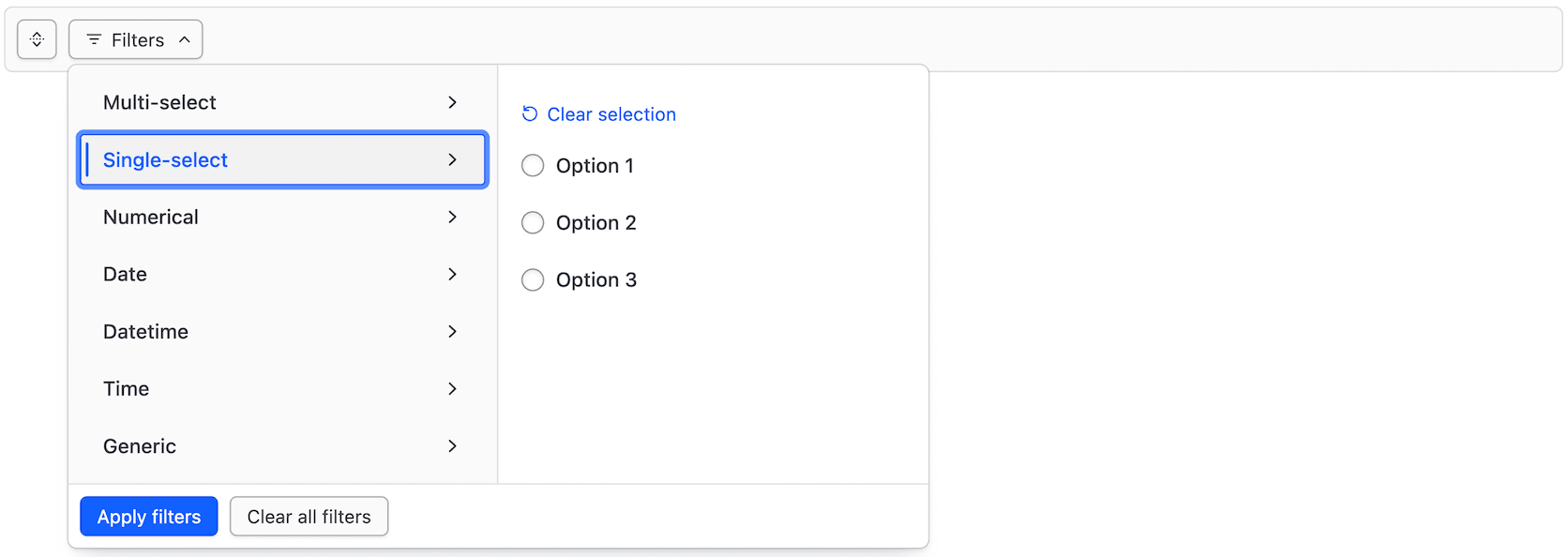

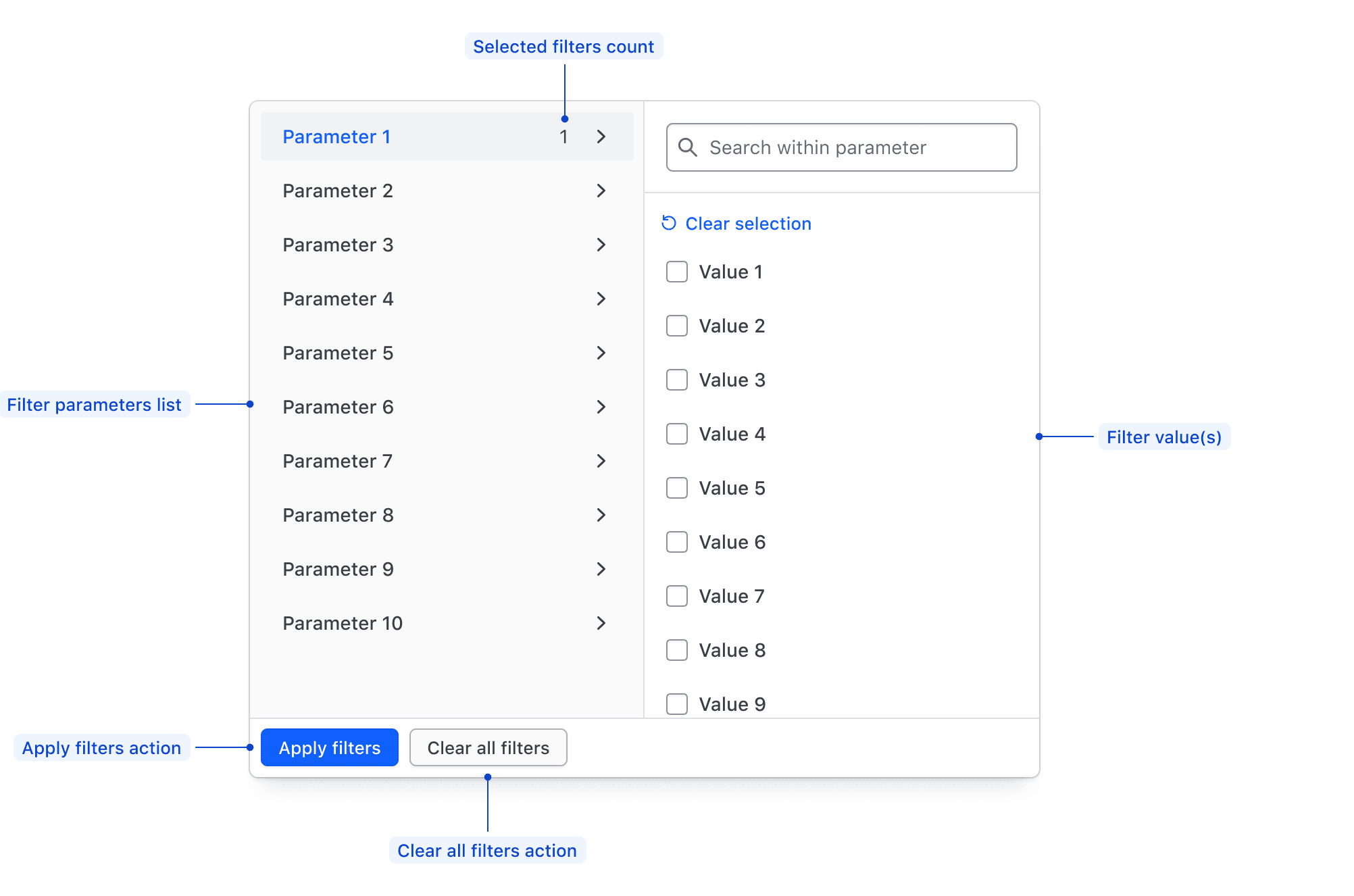

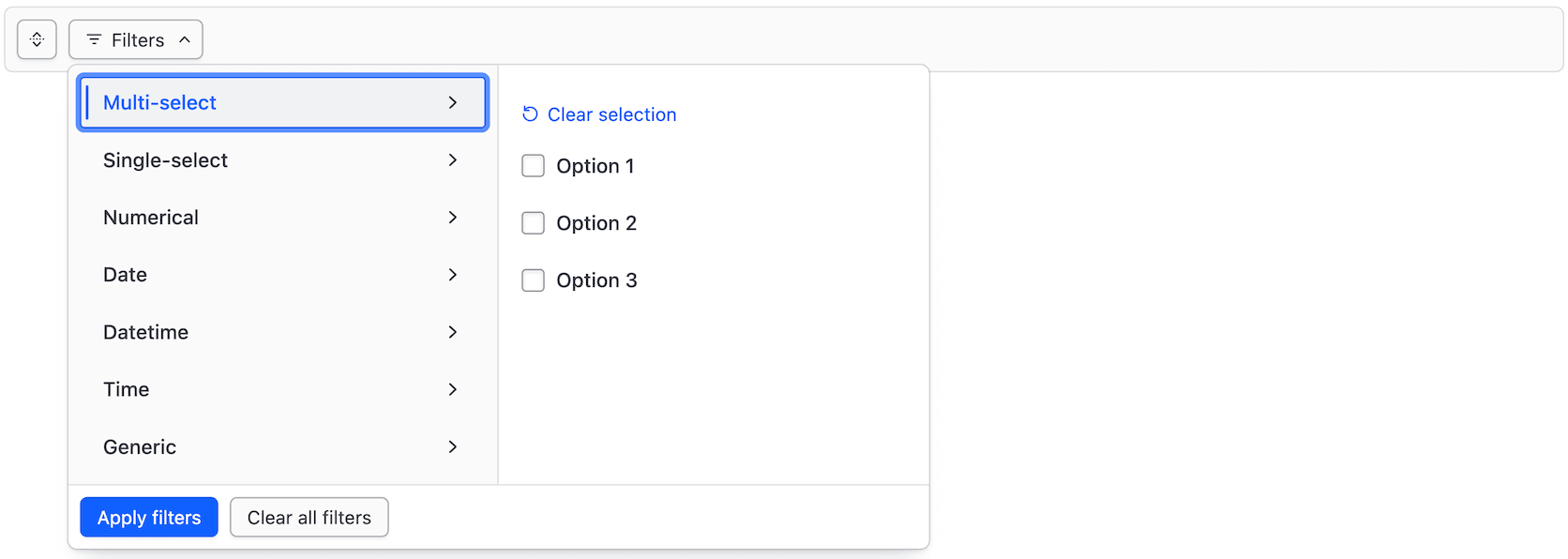

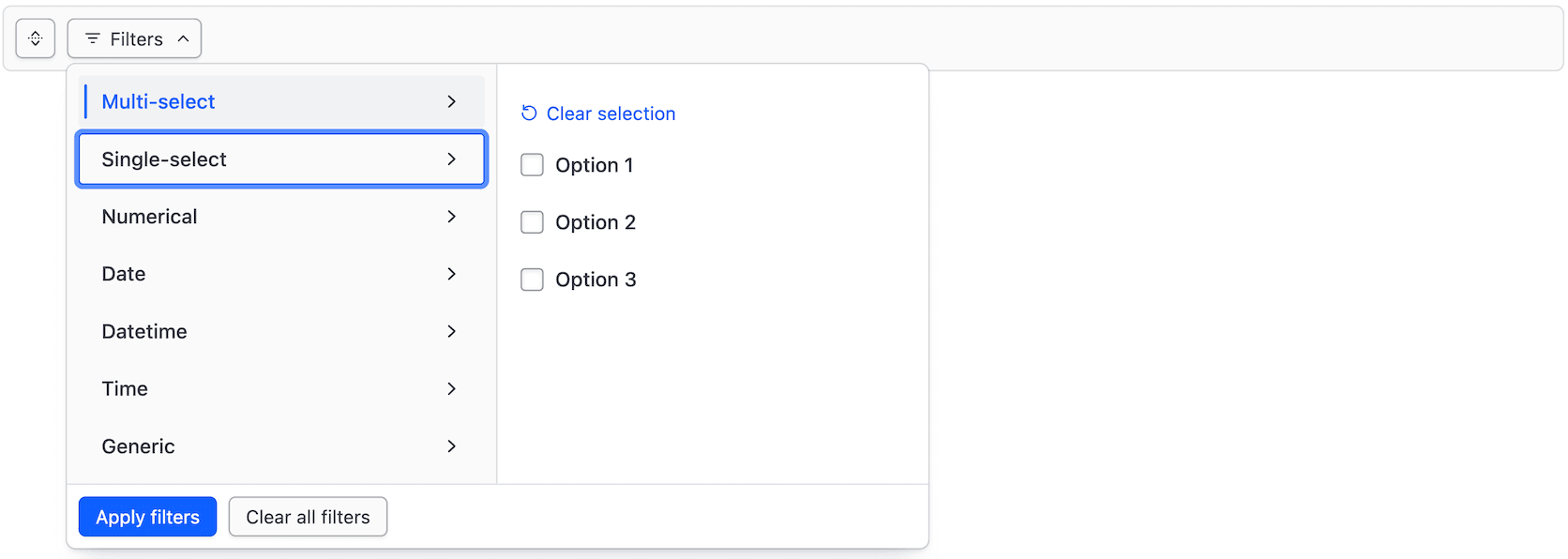

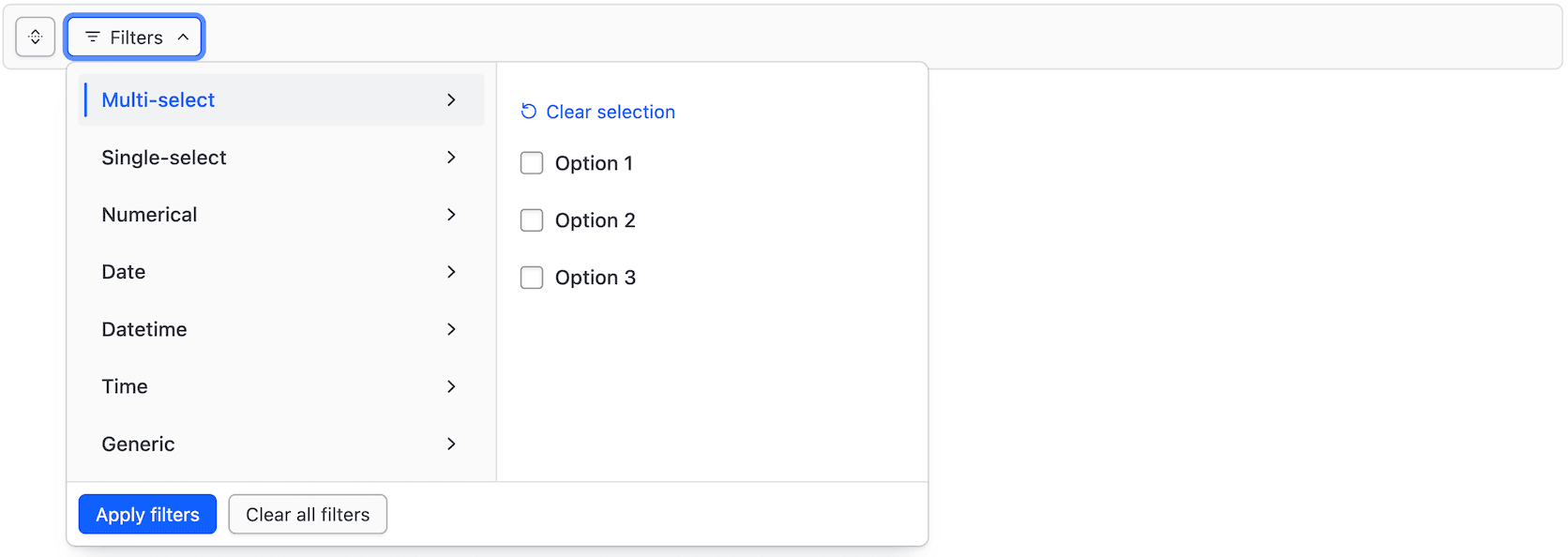

The Filter Bar includes a complex dropdown menu that displays available filter parameters, the values within each parameter, support for numerical/date/time values, value ranges, and actions to apply and clear filters.

The Filter Dropdown is responsible for the selection and application of filters and is broken into two "panels":

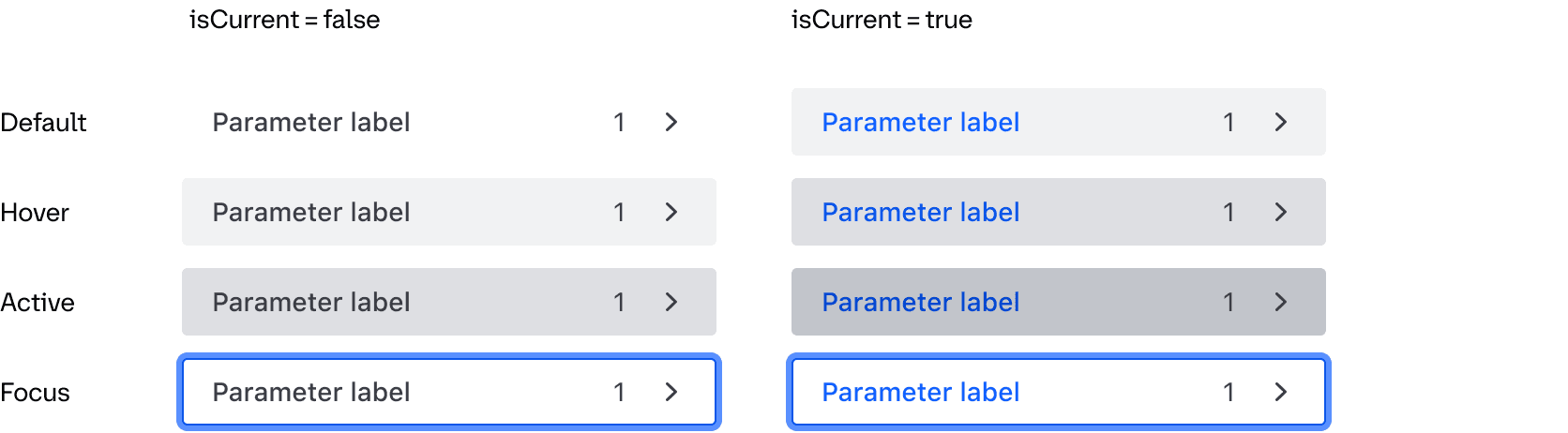

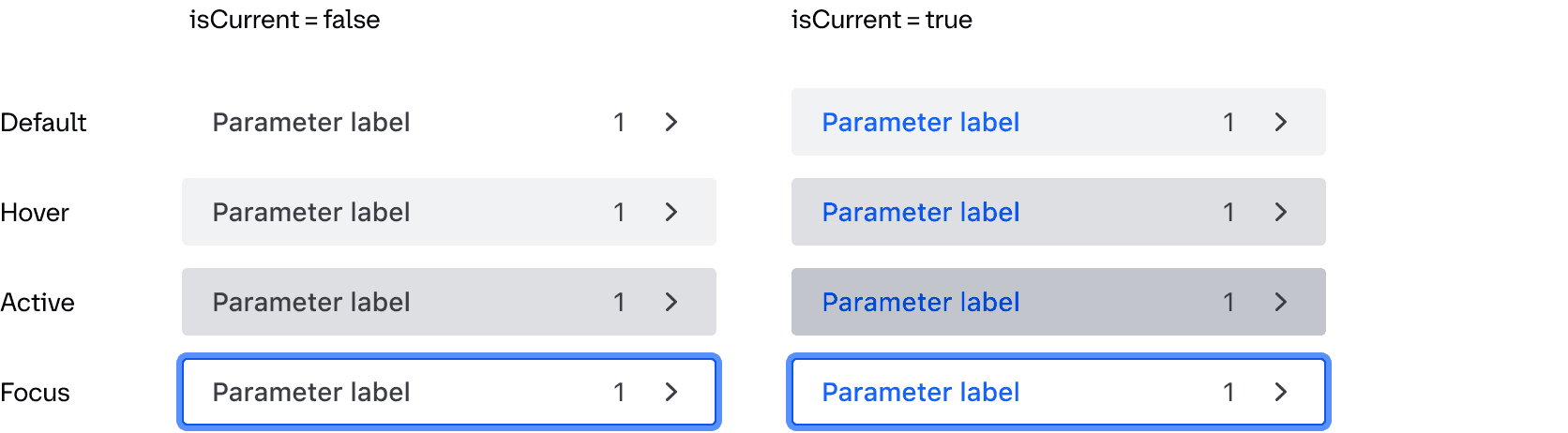

• The left panel displays the list of parameters (categories) that can be filtered upon.
• The right panel displays a list of options or a group of input fields (for numerical, date, or time values).

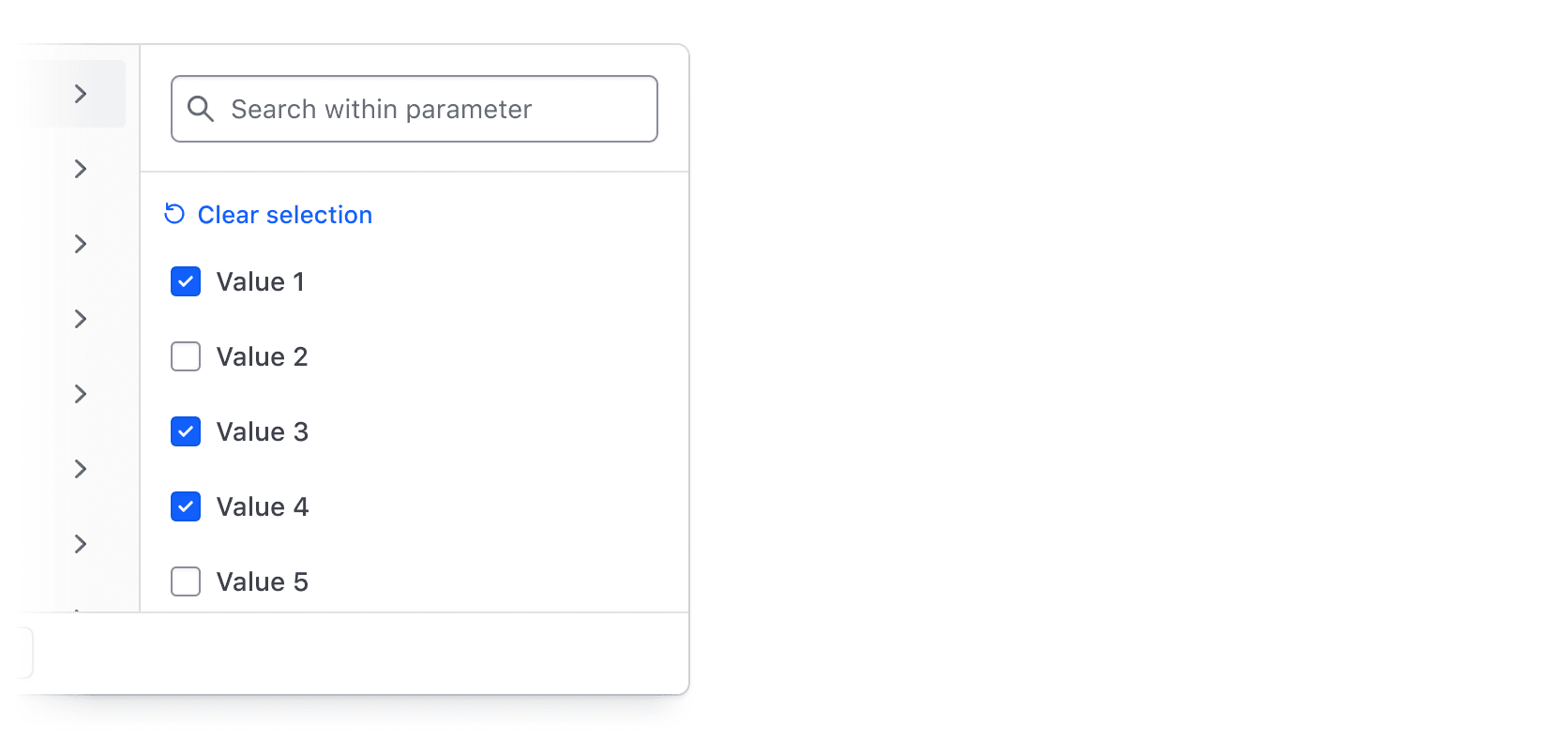

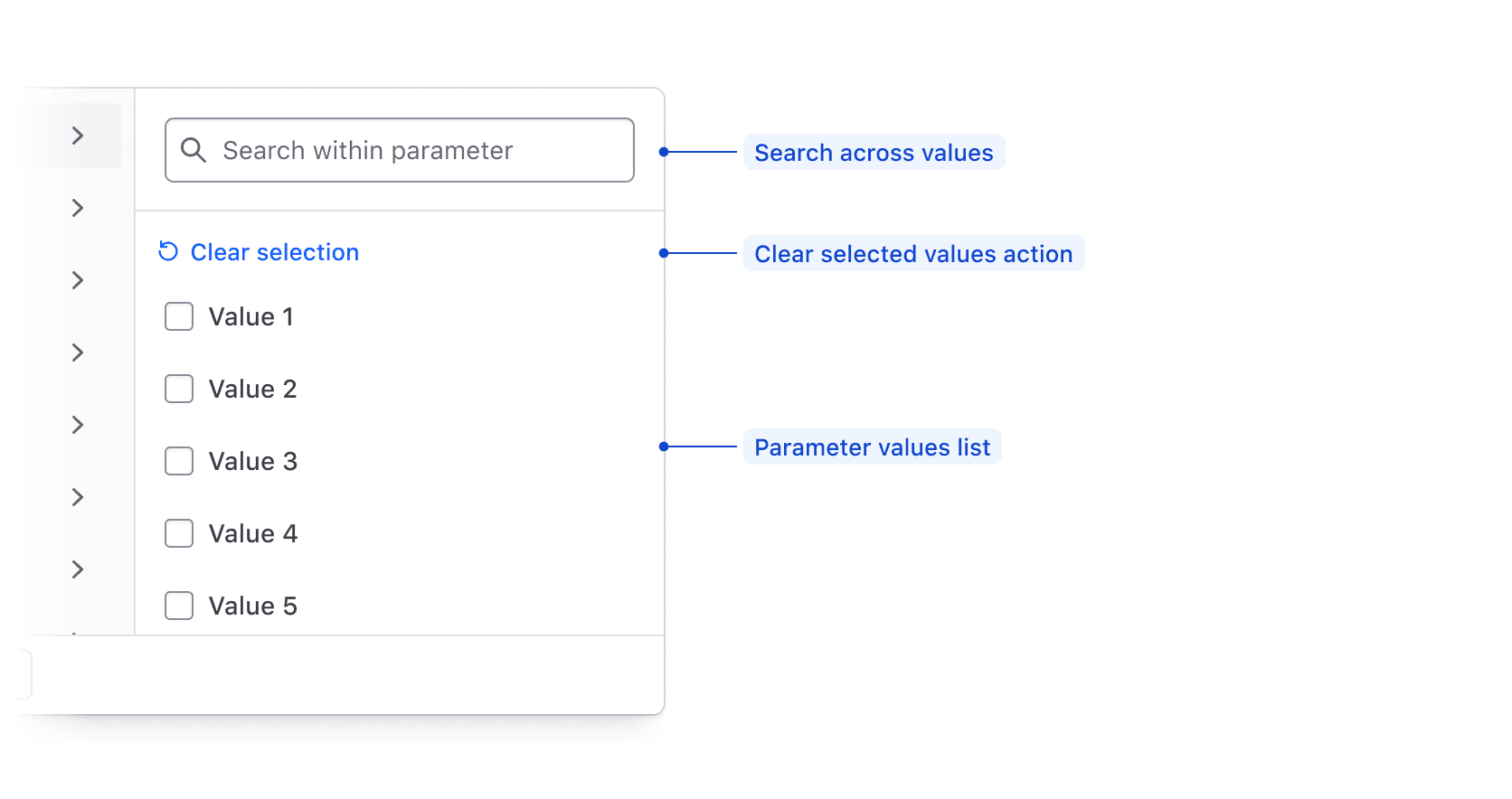

Multi-selection

Selecting multiple values from a list of options is one of the most common filtering methods. It's best suited for categorical data like statuses, but can also be used more generally to filter by a handful of text or string values.

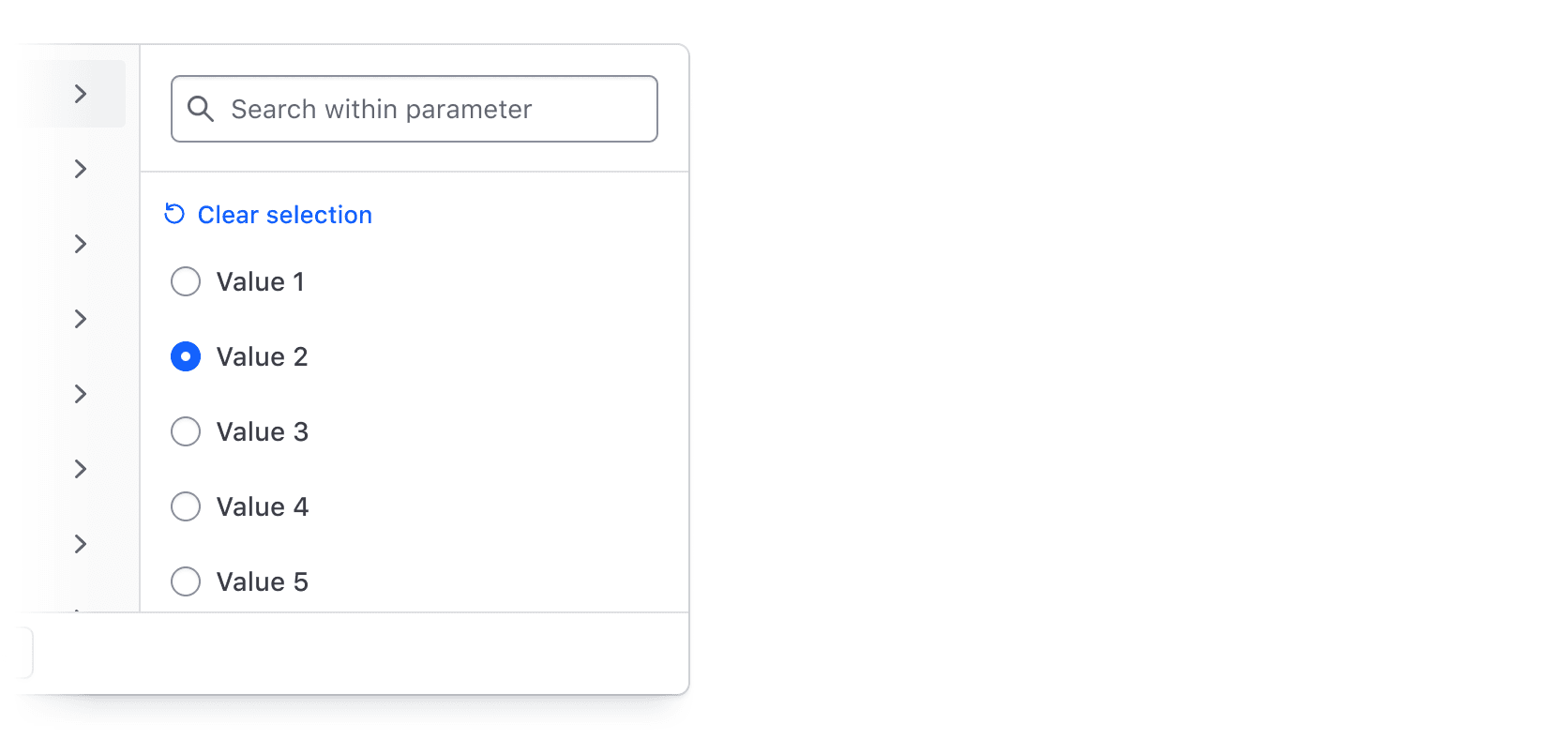

Single-selection

Selecting one value from a list of options is best suited for filter values that cannot be selected simultaneously, helping prevent an empty state.

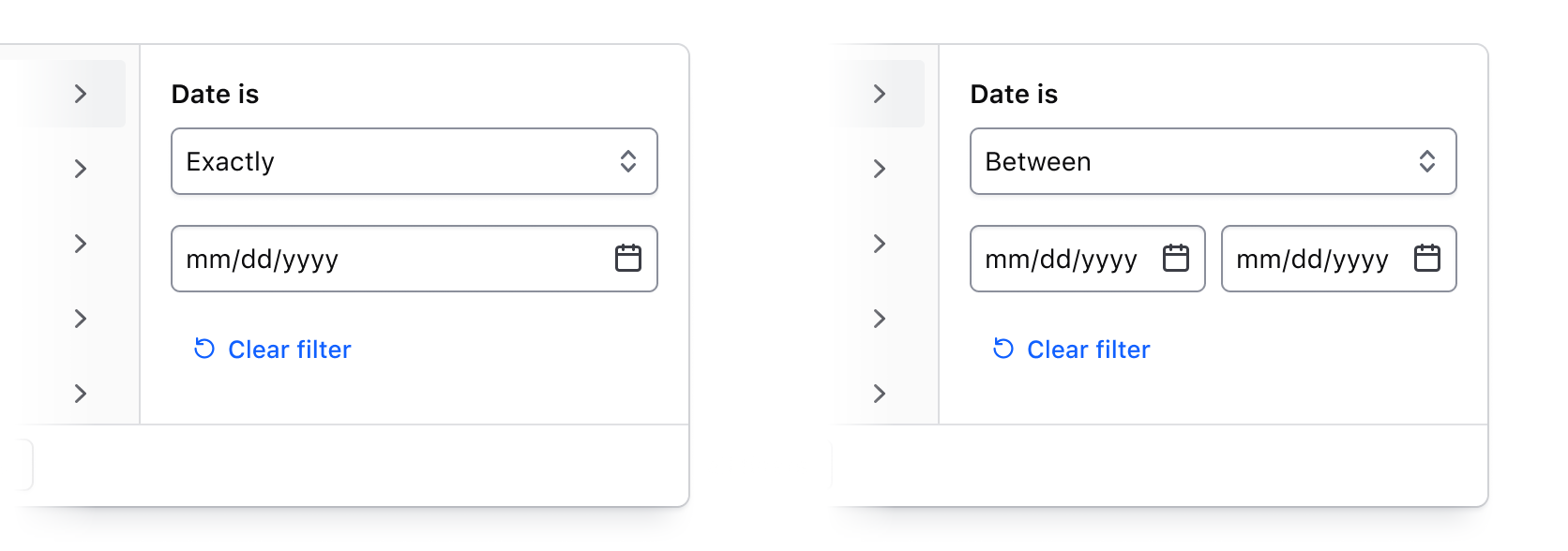

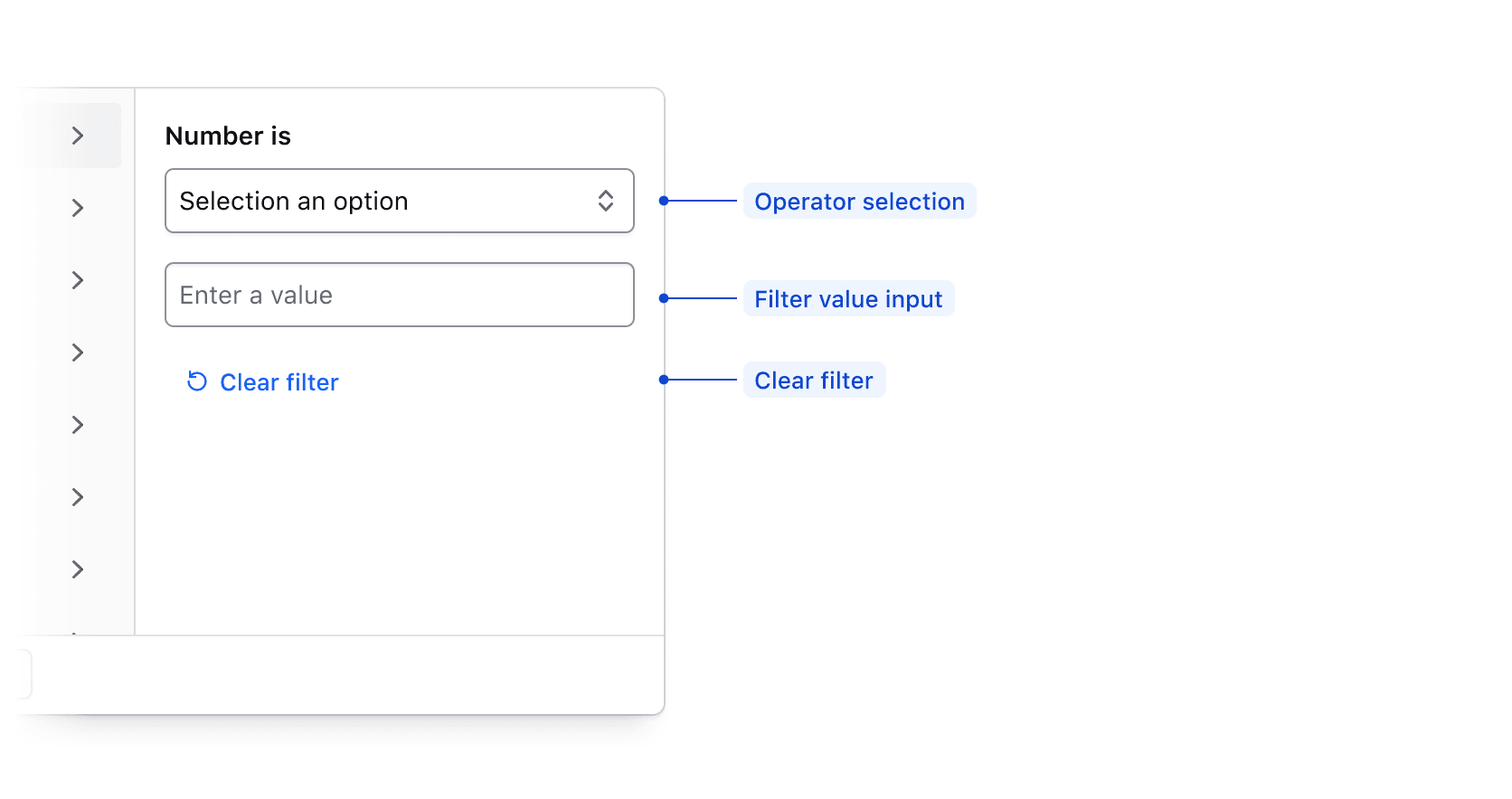

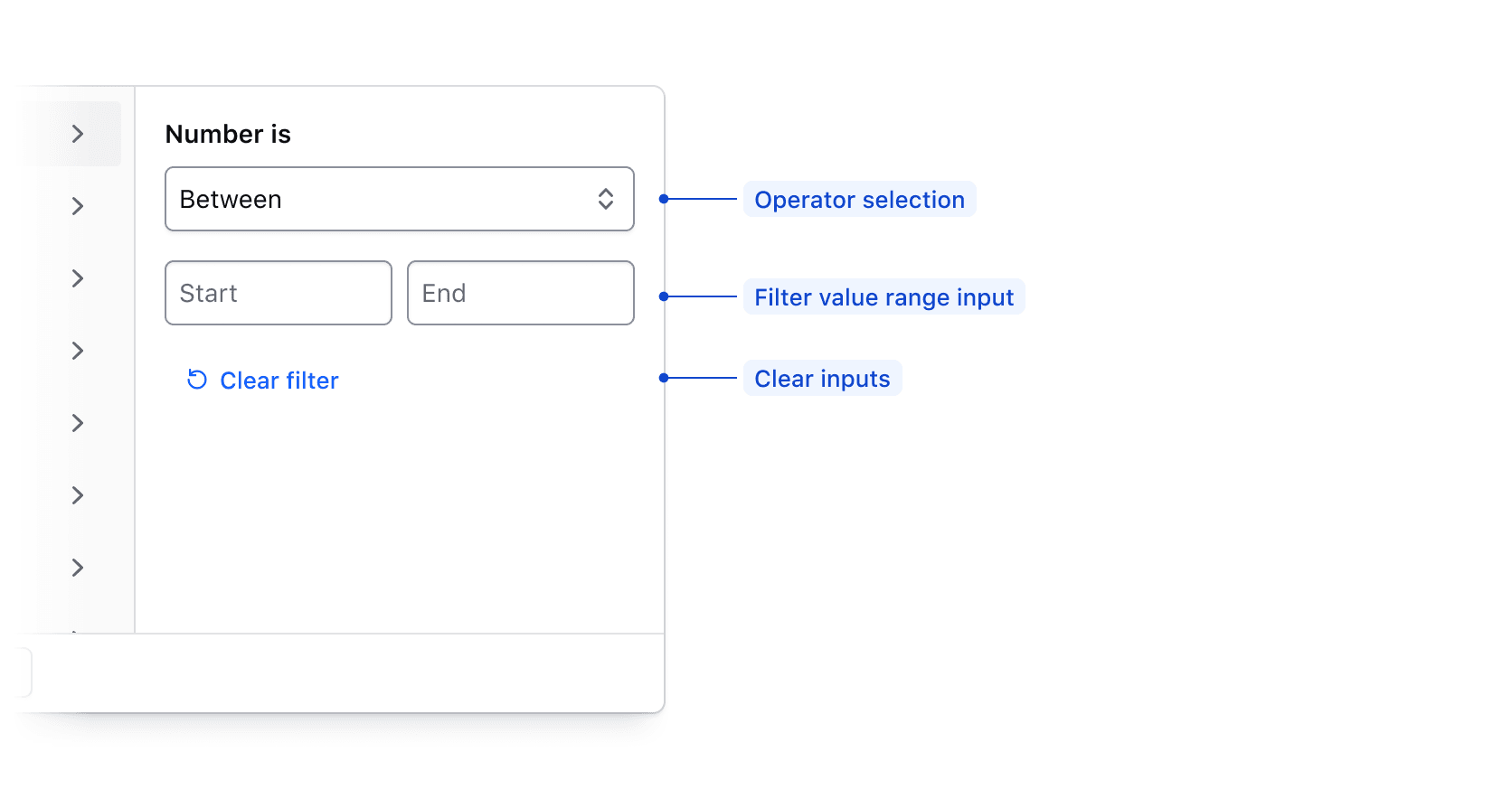

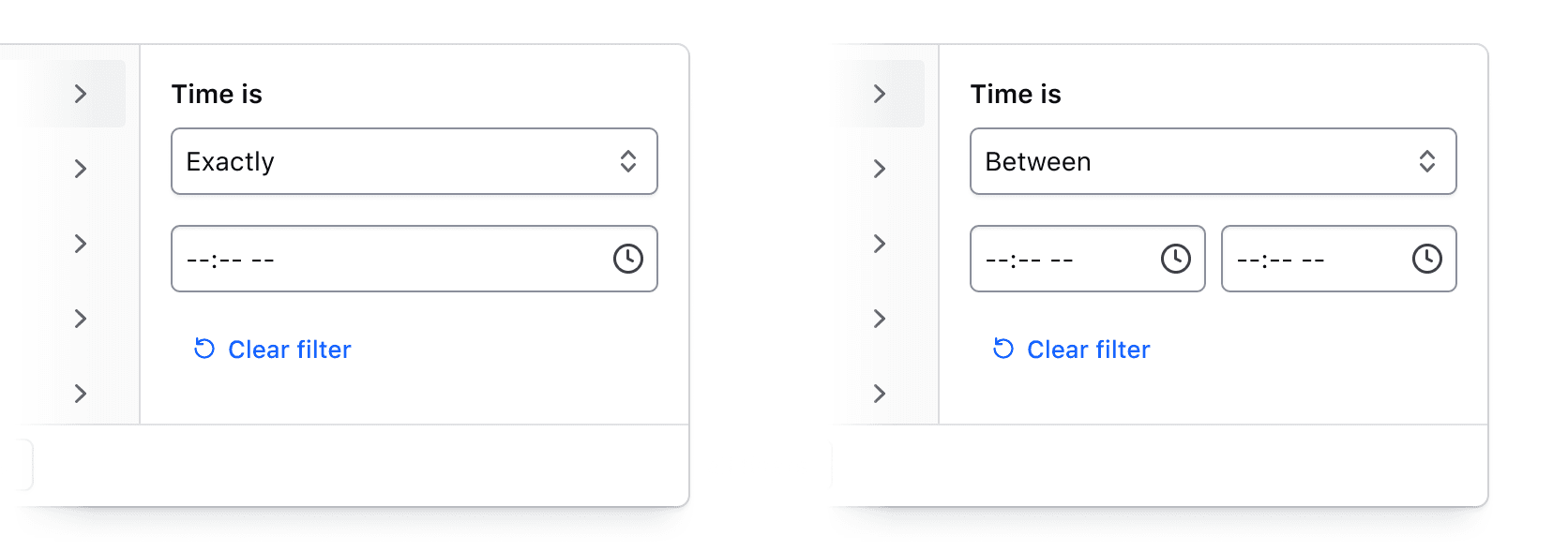

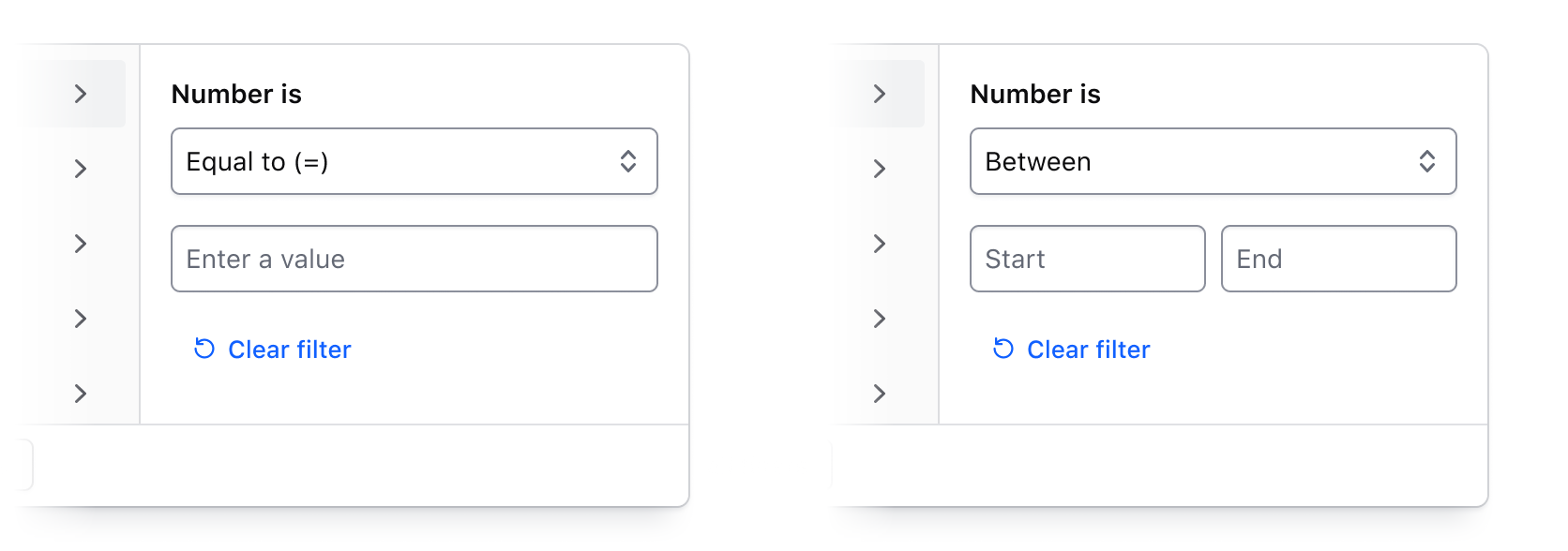

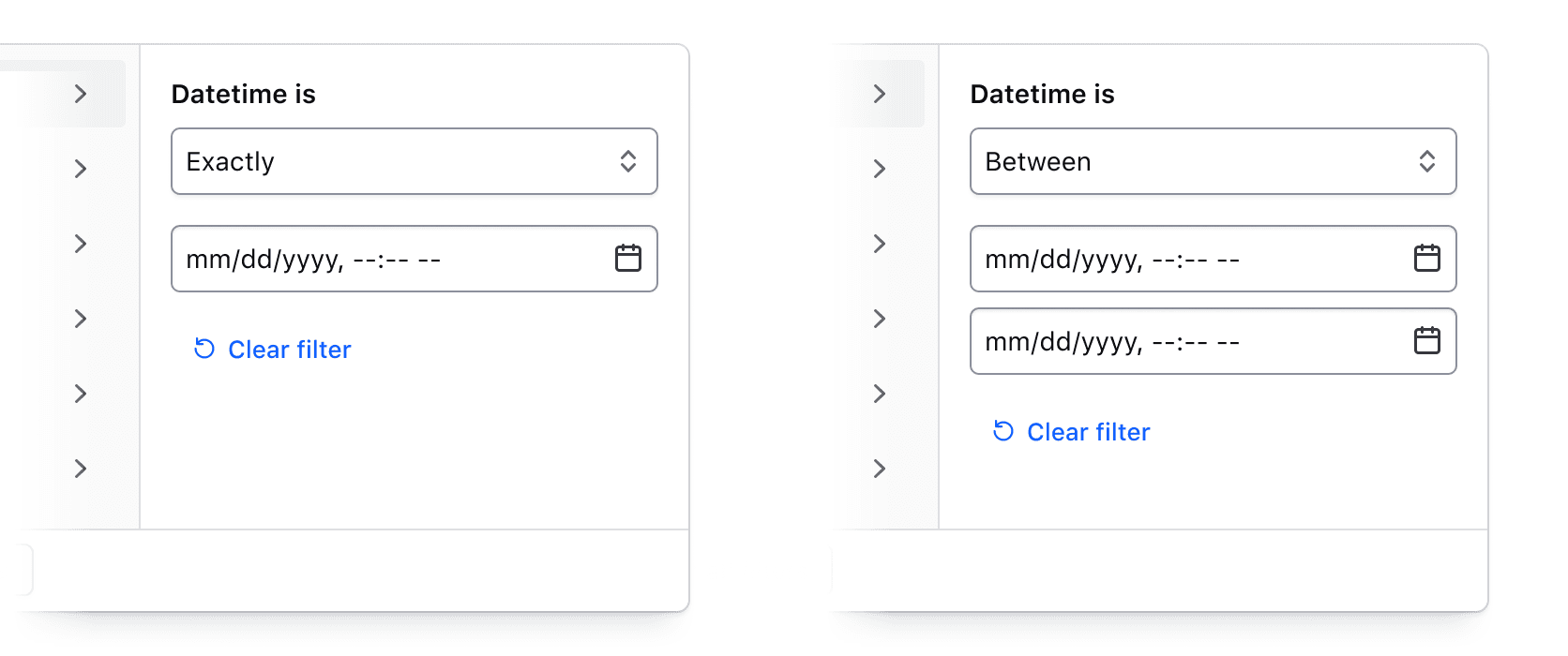

Numbers, dates, times, and datetimes

By combining an operator (greater than, less than, before, etc.) with input fields, filtering by numerical values, dates, times, and datetimes can be handled. This filtering method is best suited for range-based filtering, i.e., filtering based on comparisons of values or ranges of values.

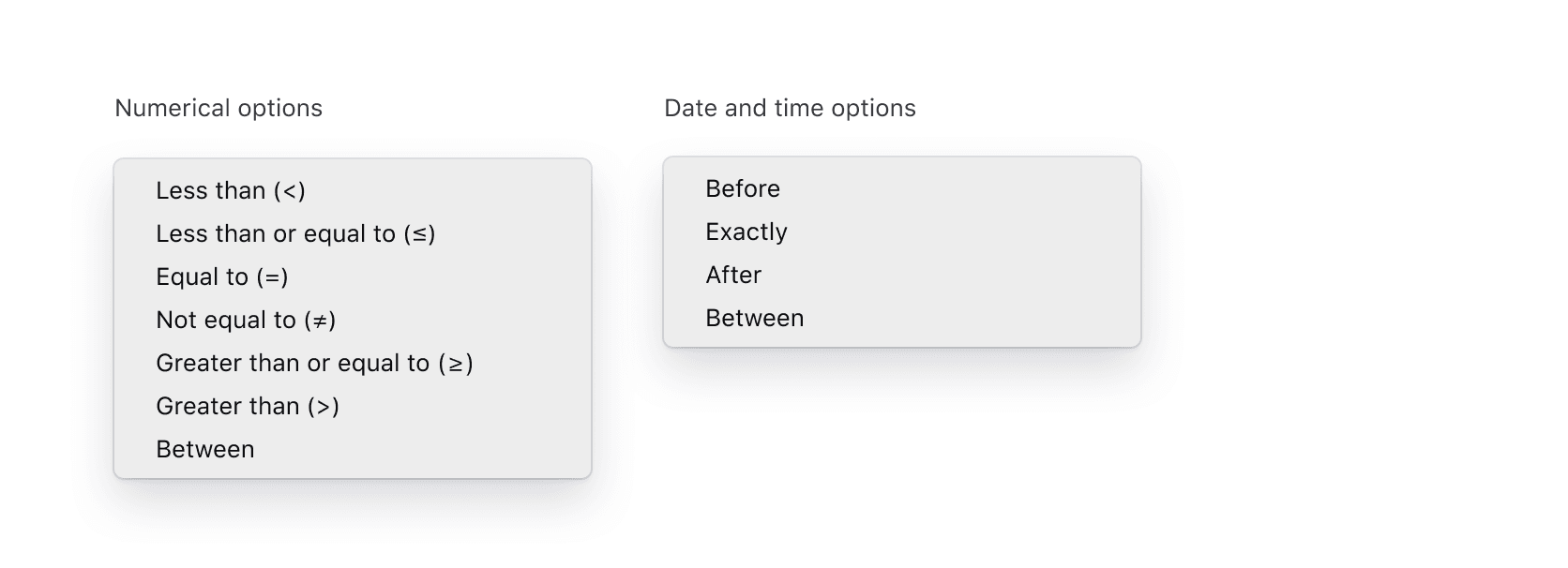

For a full list of supported operators, visit the specifications page.

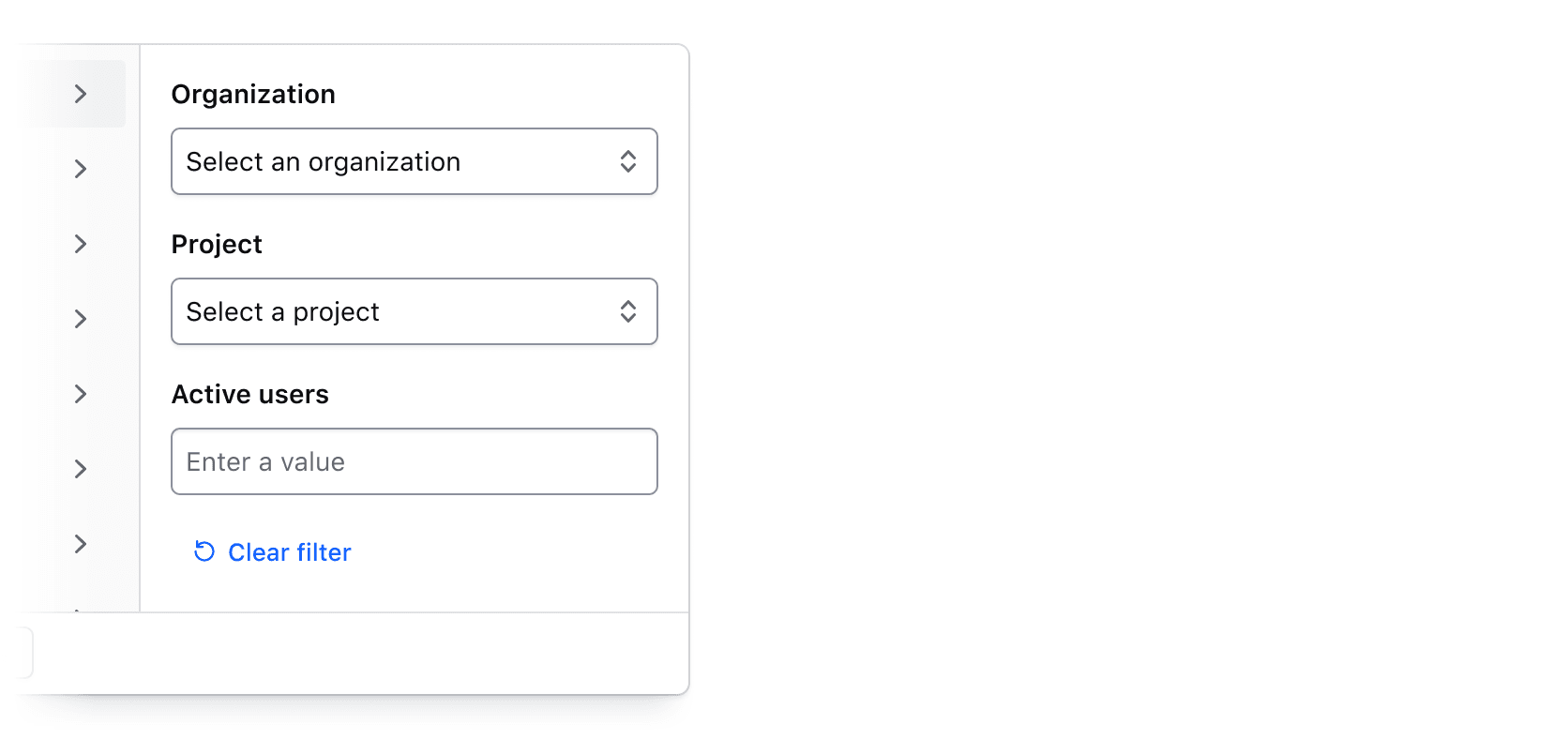

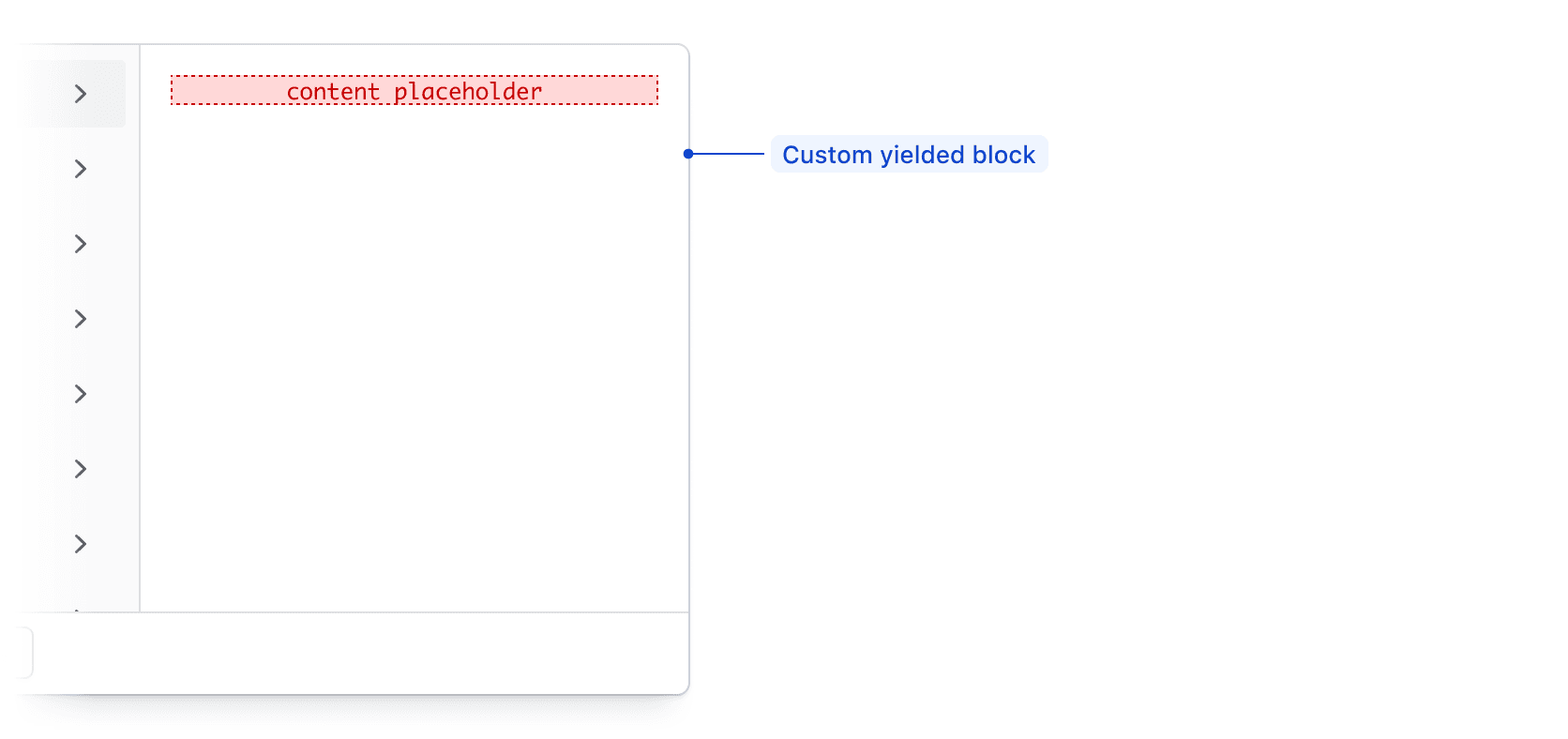

Custom filtering

While the left panel should always display the list of parameters, the right panel can be customized to meet filtering requirements beyond the out-of-the-box methods.

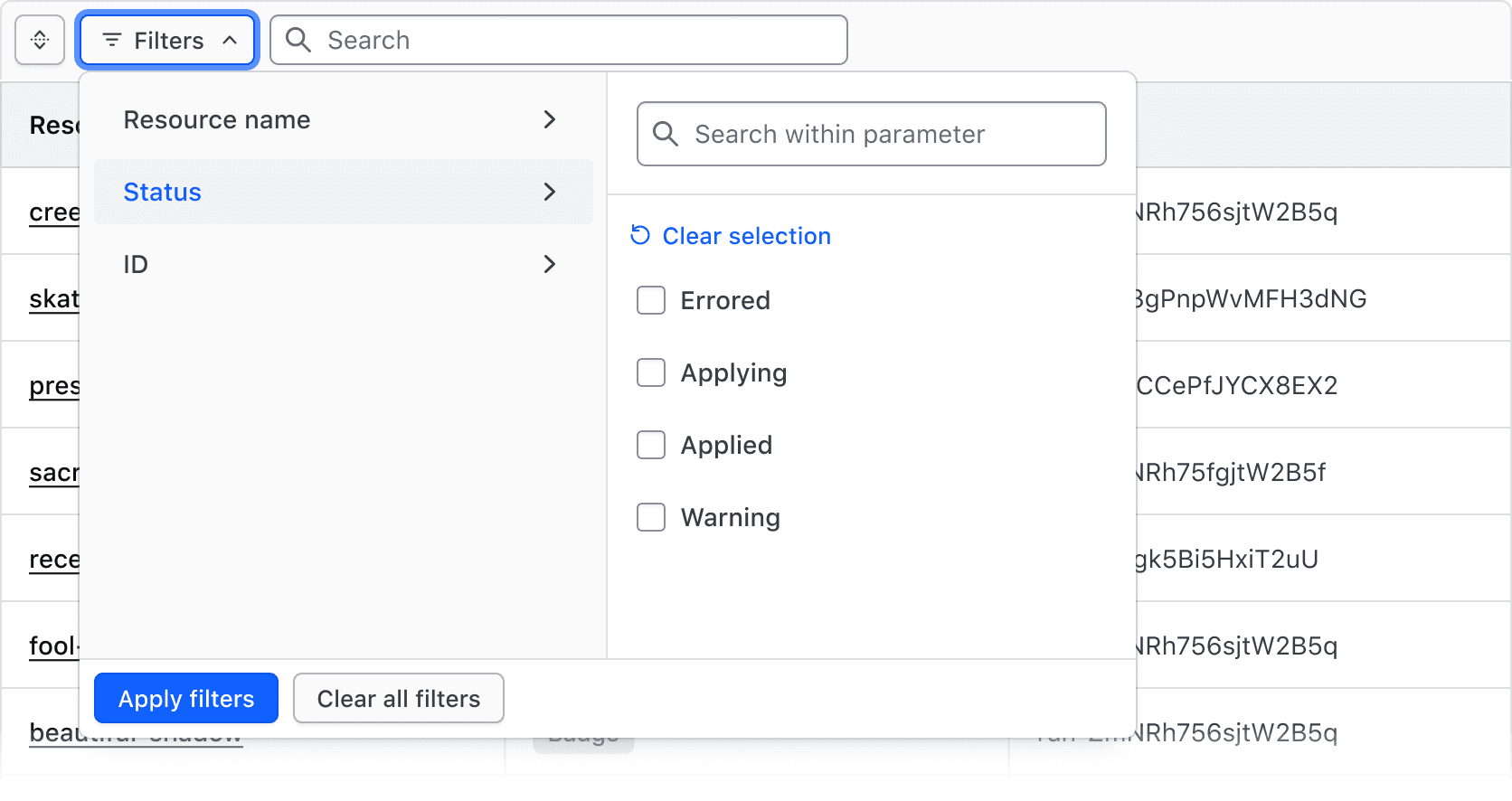

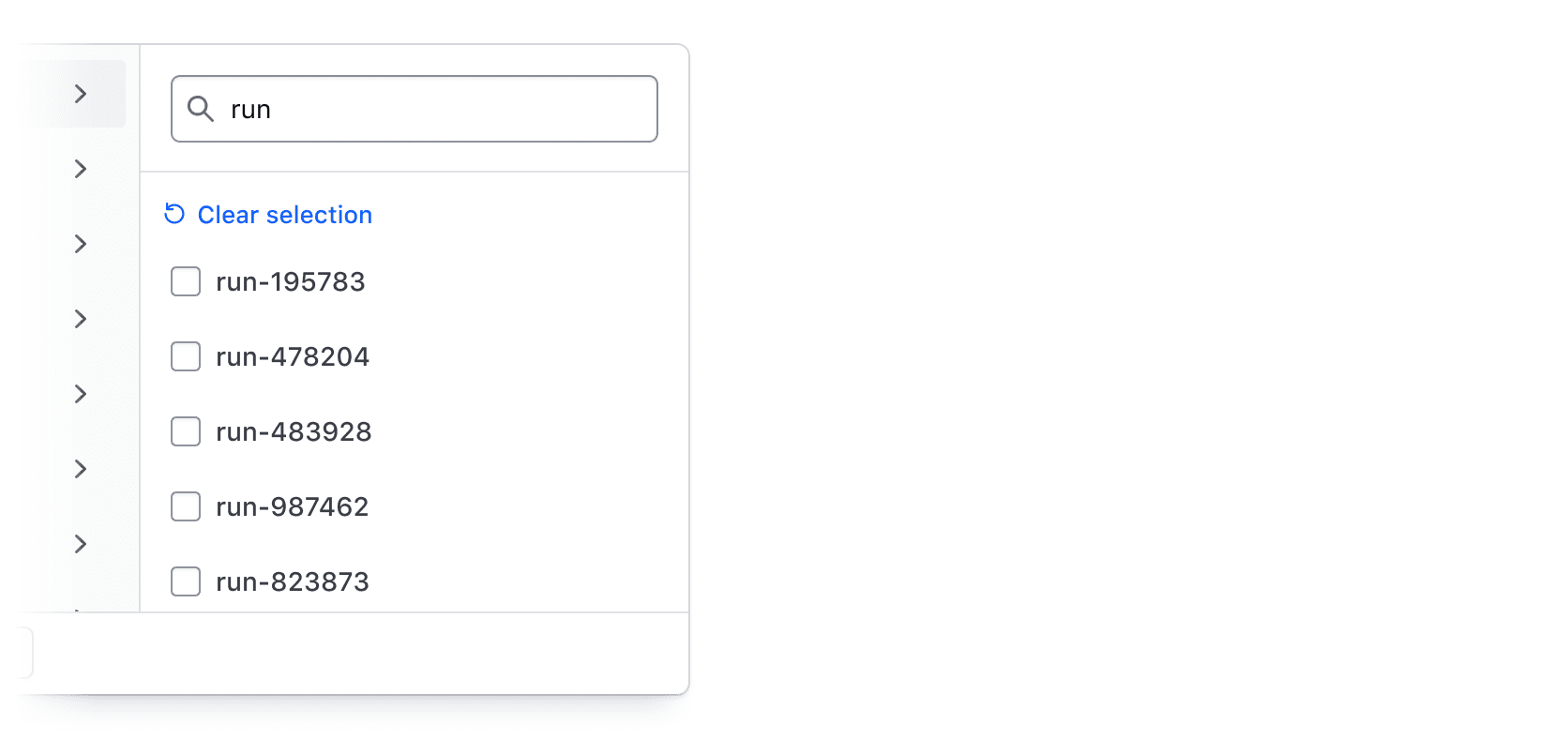

Search across filter values

Users can search across all values within a selected parameter. While search is relevant only for single- or multi-selection, it can be especially useful when there are many values or when a unique naming convention is used.

How to use this component

The Filter Bar component is used to apply and display filters to a data set. The component does not handle any filtering of the data itself, but provides a way for a user to apply filters, and a means for displaying any filters that have been applied.

To use this component, set the filter options available for a data set using the FiltersDropdown and FilterGroup contextual components. When filters are applied, the @onFilter callback provides a data object of the applied filters. To show which filters have been applied, pass a data object of the same structure to the @filters argument.

The Filter Bar is also available as a contextual component of the Advanced Table.

Filters Dropdown

All filtering options are available via a dropdown in the Filter Bar. Inside the dropdown, each filter group is represented with its own tab. When a tab is selected, the filtering options available are visible and users can add filters for that group. By clicking the "Apply filters" or "Clear all filters" buttons in the dropdown footer, the user can apply the selected filters, or clear all that have been previously set.

Filtering options are passed to the Filter Bar through the FiltersDropdown and FilterGroup contextual components. In the FilterGroup, the @key, @text, and @type arguments are required.

• The @key argument sets the key for that filter group in the data object of the onFilter callback.
• The @text argument sets the text for tab label.
• The @type argument specifies the type of filtering available for the group.

View more details on available filter types below.

<Hds::FilterBar @filters={{this.demoEmptyFilters}} @onFilter={{this.demoUpdateEmptyFilters}} as |F|>
  <F.FiltersDropdown as |D|>
    <D.FilterGroup @key="demo-multi-select" @text="Multi-select" @type="multi-select" as |F|>
      <F.Checkbox @value="option-1" @label="Option 1" />
      <F.Checkbox @value="option-2" @label="Option 2" />
      <F.Checkbox @value="option-3" @label="Option 3" />
    </D.FilterGroup>
    <D.FilterGroup @key="demo-single-select" @text="Single-select" @type="single-select" as |F|>
      <F.Radio @value="option-1" @label="Option 1" />
      <F.Radio @value="option-2" @label="Option 2" />
      <F.Radio @value="option-3" @label="Option 3" />
    </D.FilterGroup>
    <D.FilterGroup @key="demo-number" @text="Number" @type="numerical" />
    <D.FilterGroup @key="date" @text="Date" @type="date" />
    <D.FilterGroup @key="demo-time" @text="Time" @type="time" />
    <D.FilterGroup @key="demo-datetime" @text="Datetime" @type="datetime" />
  </F.FiltersDropdown>
</Hds::FilterBar>

Applying filters

A user can apply, update, or clear filters within the dropdown. The @onFilter callback is used to listen for and respond to changes to the filters.

The callback provides a data object of applied filters which come from a user's filter selections. This object can be used to run any filtering operations on a data set, and then be passed back into the @filters argument of the Filter Bar to show the applied filters.

Based on the applied filters passed to the @filters argument, dismissible Tags will be shown for each applied filter. When a Tag is dismissed, the @onFilter callback will be triggered, and that filter will be removed from the object.

<Hds::FilterBar @filters={{this.demoFilters}} @onFilter={{this.demoUpdateFilters}} as |F|>
  <F.FiltersDropdown as |D|>
    <D.FilterGroup @key="project" @text="Project" @type="multi-select" as |F|>
      <F.Checkbox @value="project-1" @label="Project 1" />
      <F.Checkbox @value="project-2" @label="Project 2" />
      <F.Checkbox @value="project-3" @label="Project 3" />
    </D.FilterGroup>
    <D.FilterGroup @key="version" @text="Version" @type="single-select" as |F|>
      <F.Radio @value="1.0" @label="1.0" />
      <F.Radio @value="2.0" @label="2.0" />
      <F.Radio @value="3.0" @label="3.0" />
    </D.FilterGroup>
  </F.FiltersDropdown>
</Hds::FilterBar>

Live filtering

By default, the @onFilter callback is not triggered when a filter is added in the dropdown. Instead, the callback is triggered when the user confirms their filters with the "Apply filters" button, or clears them with the "Clear all filters" button.

If the @isLiveFilter argument is set to true, the @onFilter callback will be triggered as soon as a user adds a filter in the dropdown. If it is a selection-based filter, like a checkbox or radio button, the filtering would occur on selection. If it is an input-based filter, like a date or number, the filter would be applied when both inputs are correctly filled out.

<Hds::FilterBar
  @filters={{this.demoLiveFilters}}
  @isLiveFilter={{true}}
  @onFilter={{this.demoUpdateLiveFilters}}
  as |F|
>
  <F.FiltersDropdown as |D|>
    <D.FilterGroup @key="project" @text="Project" @type="multi-select" as |F|>
      <F.Checkbox @value="project-1" @label="Project 1" />
      <F.Checkbox @value="project-2" @label="Project 2" />
      <F.Checkbox @value="project-3" @label="Project 3" />
    </D.FilterGroup>
    <D.FilterGroup @key="version" @text="Version" @type="single-select" as |F|>
      <F.Radio @value="1.0" @label="1.0" />
      <F.Radio @value="2.0" @label="2.0" />
      <F.Radio @value="3.0" @label="3.0" />
    </D.FilterGroup>
    <D.FilterGroup @key="creation-date" @text="Creation date" @type="date" />
  </F.FiltersDropdown>
</Hds::FilterBar>

Filter types

The Filter Bar includes distinct filter groups to accommodate various data types.

Single-select and Multi-select

The single-select and multi-select filter types are used for filtering a list of items by one or multiple values. The options available for selection can be set using the Radio and Checkbox contextual components inside the FilterGroup.

If the @searchEnabled argument in the FilterGroup is set to true, the list of options can be searched through using a provided search input.

The dismissible filter tag will display the label for a given filter, and if the label is not provided it will display the value.

<Hds::FilterBar @filters={{this.demoSelectionFilters}} @onFilter={{this.demoUpdateSelectionFilters}} as |F|>
  <F.FiltersDropdown as |D|>
    <D.FilterGroup @key="demo-single-select" @text="Single-select" @type="single-select" @searchEnabled={{true}} as |F|>
      <F.Radio @value="option-1" @label="Option 1" />
      <F.Radio @value="option-2" @label="Option 2" />
      <F.Radio @value="option-3" @label="Option 3" />
    </D.FilterGroup>
    <D.FilterGroup @key="demo-multi-select" @text="Multi-select" @type="multi-select" @searchEnabled={{true}} as |F|>
      <F.Checkbox @value="option-1" @label="Option 1" />
      <F.Checkbox @value="option-2" @label="Option 2" />
      <F.Checkbox @value="option-3" @label="Option 3" />
    </D.FilterGroup>
  </F.FiltersDropdown>
</Hds::FilterBar>

// example of filter data
const demoSelectionFilters = {
  'demo-single-select': {
    type: 'single-select',
    text: 'Single-select',
    data: {
      value: 'option-1',
      label: 'Option 1',
    },
  },
  'demo-multi-select': {
    type: 'multi-select',
    text: 'Multi-select',
    data: [
      { value: 'option-1', label: 'Option 1' },
      { value: 'option-2', label: 'Option 2' },
    ],
  }
};

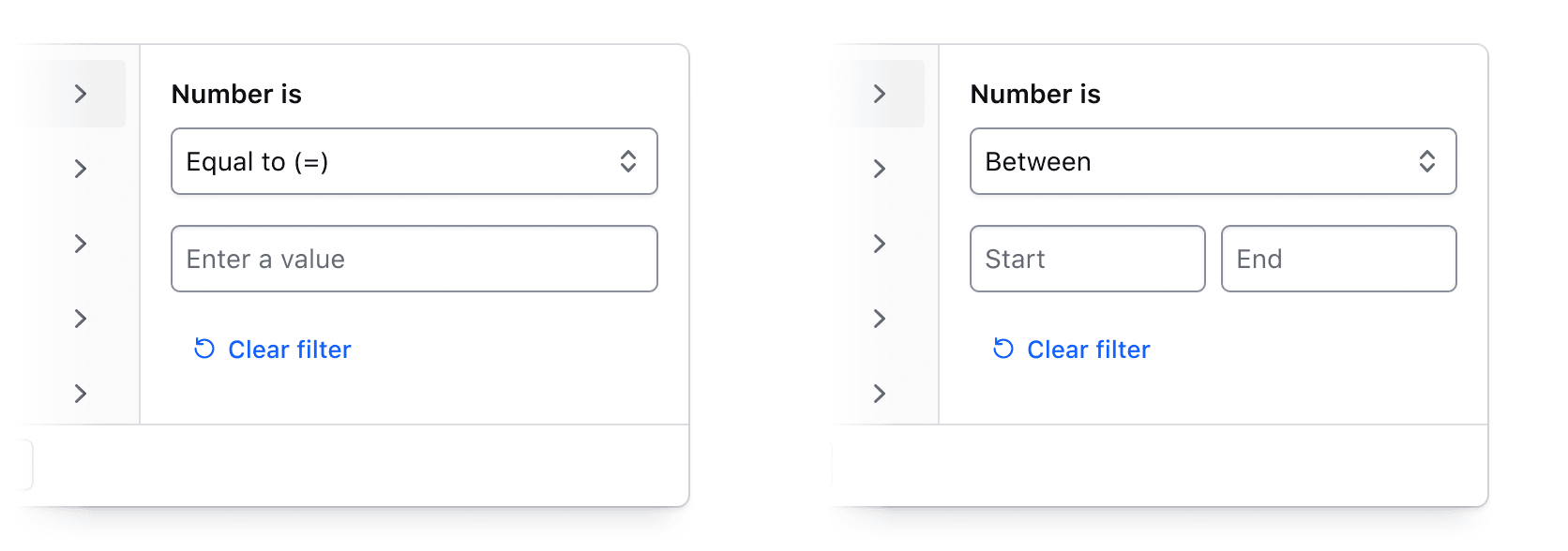

Numerical

The numerical filter type is used for any data which is numerical in nature. It provides options for all comparison operators including a between selector.

<Hds::FilterBar @filters={{this.demoNumericalFilters}} @onFilter={{this.demoUpdateNumericalFilters}} as |F|>
  <F.FiltersDropdown as |D|>
    <D.FilterGroup @key="demo-numerical-a" @text="Numerical A" @type="numerical" />
    <D.FilterGroup @key="demo-numerical-b" @text="Numerical B" @type="numerical" />
  </F.FiltersDropdown>
</Hds::FilterBar>

// example of filter data
const demoNumericalFilters = {
  'demo-numerical-a': {
    type: 'numerical',
    text: 'Numerical A',
    data: {
      selector: 'less-than',
      value: 10,
    },
  },
  'demo-numerical-b': {
    type: 'numerical',
    text: 'Numerical B',
    data: {
      selector: 'between',
      value: {
        start: 10,
        end: 20,
      }
    },
  }
};

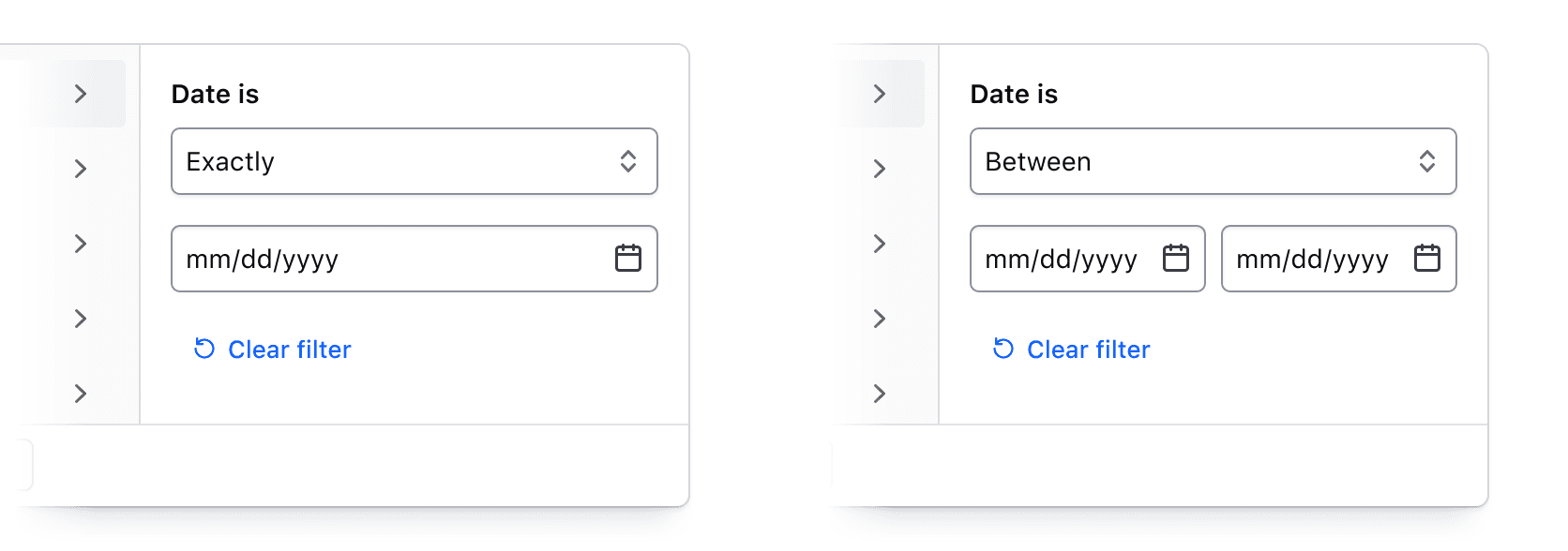

Date & time

There are filter types available for various date and time data through the date, time, and datetime filter types. All three types also support the between selector.

Dates and times are formatted in the applied filter tags using the ember-intl service.

<Hds::FilterBar @filters={{this.demoDateTimeFilters}} @onFilter={{this.demoUpdateDateTimeFilters}} as |F|>
  <F.FiltersDropdown as |D|>
    <D.FilterGroup @key="demo-date" @text="Date" @type="date" />
    <D.FilterGroup @key="demo-time" @text="Time" @type="time" />
    <D.FilterGroup @key="demo-datetime" @text="Datetime" @type="datetime" />
    <D.FilterGroup @key="demo-date-range" @text="Date range" @type="date" />
  </F.FiltersDropdown>
</Hds::FilterBar>

// example of filter data
const demoDateTimeFilters = {
  'demo-date': {
    type: 'date',
    text: 'Date',
    data: {
      selector: 'before',
      value: '2025-01-01',
    },
  },
  'demo-time': {
    type: 'time',
    text: 'Time',
    data: {
      selector: 'before',
      value: '20:00',
    },
  },
  'demo-datetime': {
    type: 'datetime',
    text: 'Datetime',
    data: {
      selector: 'before',
      value: '2025-01-01T12:00',
    },
  },
  'demo-date-range': {
    type: 'date',
    text: 'Date range',
    data: {
      selector: 'between',
      value: {
        start: '2024-01-01',
        end: '2025-01-01',
      }
    },
  }
};

Custom filtering

For filtering support outside of the filter types supported above, an option for more customized filtering is available through the generic filter type, and the Generic contextual component inside the FilterGroup. The Generic contextual component provides an updateFilter argument function that can be used to trigger updates to the filter inside the dropdown.

The dismissible filter tag can be customized by setting dismissTagText on the filter. If this is not provided, the dismissible filter tag's text will function similarly to the single-select and multi-select filter types, where the value or label is displayed.

The @onClear callback can be used to listen to the FilterGroup "Clear filter" button, and reset any content inside your filter such as clearing a form input.

<Hds::FilterBar @filters={{this.demoGenericFilters}} @onFilter={{this.demoUpdateGenericFilters}} as |F|>
  <F.FiltersDropdown as |D|>
    <D.FilterGroup @key="demo-generic" @text="Generic" @type="generic" @onClear={{this.onClear}} as |FG|>
      <FG.Generic as |G|>
        <Hds::Form::TextInput::Field
          @value={{this.demoGenericName}}
          {{on "input" (fn this.onGenericNameChange G.updateFilter)}}
          name="name"
          as |FT|
        >
          <FT.Label>Name</FT.Label>
        </Hds::Form::TextInput::Field>
      </FG.Generic>
    </D.FilterGroup>
  </F.FiltersDropdown>
</Hds::FilterBar>

// example of filter data
const demoGenericFilters = {
  'demo-generic': {
    type: 'generic',
    text: 'Generic',
    dismissTagText: 'equals Name',
    data: {
      value: 'Name',
    },
  }
};

A generic filter can also contain multiple filters, similar to a multi-select filter. By passing an array of data to the data object each item in the array will be displayed as a distinct filter.

The dismissible filter tag will display the label for a given filter, and if the label is not provided it will display the value. The text can be customized by adding a dismissTagText value.

<Hds::FilterBar @filters={{this.demoGenericArrayFilters}} @onFilter={{this.demoUpdateGenericArrayFilters}} as |F|>
  <F.FiltersDropdown as |D|>
    <D.FilterGroup @key="demo-generic-array" @text="Generic" @type="generic" @onClear={{this.onClear}} as |FG|>
      <FG.Generic as |G|>
        <Hds::Form::TextInput::Field
          @value={{this.demoGenericArrayName1}}
          {{on "input" (fn this.onGenericArrayName1Change G.updateFilter)}}
          name="name-1"
          as |FT|
        >
          <FT.Label>Name 1</FT.Label>
        </Hds::Form::TextInput::Field>
        <Hds::Form::TextInput::Field
          @value={{this.demoGenericArrayName2}}
          {{on "input" (fn this.onGenericArrayName2Change G.updateFilter)}}
          name="name-2"
          as |FT|
        >
          <FT.Label>Name 2</FT.Label>
        </Hds::Form::TextInput::Field>
      </FG.Generic>
    </D.FilterGroup>
  </F.FiltersDropdown>
</Hds::FilterBar>

// example of filter data
const demoGenericArrayFilters = {
  'demo-generic-array': {
    type: 'generic',
    text: 'Generic',
    data: [
      { value: 'Name 1', label: 'Name 1' },
      { value: 'Name 2', dismissTagText: 'equals Name 2' }
    ]
  }
};

Callbacks

The @onClear argument can be added to the FilterGroup to listen for when a user triggers a clear of the filter group. This can be used to reset any inputs present in the filter content.

If your content for inputting filters can change dynamically, it's possible focus can be lost if an element with focus is removed. By default, the FiltersDropdown will close anytime focus leaves, including if it is lost. You can use the @onFocusOut argument to stop the dropdown from closing when this occurs and set focus on another appropriate element.

<Hds::FilterBar @filters={{this.demoGenericFilters}} @onFilter={{this.demoUpdateGenericFilters}} as |F|>
  <F.FiltersDropdown @onFocusOut={{this.onFocusOut}} as |D|>
    <D.FilterGroup @key="demo-generic" @text="Demo generic" @type="generic" @onClear={{this.onClear}} as |F|>
      <F.Generic as |G|>
        <Hds::Form::TextInput::Field
          @value={{this.name}}
          @id="demo-name"
          {{on "input" (fn this.onNameChange G.updateFilter)}}
          name="name"
          as |F|
        >
          <F.Label>Name</F.Label>
        </Hds::Form::TextInput::Field>
        {{#if this.showExtraName}}
          <Hds::Form::TextInput::Field
            @value={{this.nameExtra}}
            {{on "input" (fn this.onNameExtraChange G.updateFilter)}}
            name="name-extra"
            as |F|
          >
            <F.Label>Extra name</F.Label>
          </Hds::Form::TextInput::Field>
          <Hds::Button
            @text="Remove name"
            @color="secondary"
            @size="small"
            id="btn-remove-extra-name"
            {{on "click" this.removeExtraName}}
          />
        {{else}}
          <Hds::Button
            @text="Add name"
            @color="secondary"
            @size="small"
            id="btn-add-extra-name"
            {{on "click" this.addExtraName}}
          />
        {{/if}}
        <Hds::Text::Body @size="100">
          This filter has a dynamic template that changes based on the number of values added. On clear, the filter
          should reset to only showing one input.
        </Hds::Text::Body>
      </F.Generic>
    </D.FilterGroup>
  </F.FiltersDropdown>
</Hds::FilterBar>

Search

The Filter Bar provides a search input, which can be used for searching across multiple areas of a data set. If the @hasSearch argument is set to true, a search input will be shown next to the dropdown.

When the search input's input event is triggered, a filter of type search will be included in the data object in the @onFilter callback.

<Hds::FilterBar
  @filters={{this.demoSearchFilters}}
  @onFilter={{this.demoUpdateSearchFilters}}
  @hasSearch={{true}}
  as |F|
>
  <F.FiltersDropdown as |D|>
    <D.FilterGroup @key="project" @text="Project" @type="multi-select" as |F|>
      <F.Checkbox @value="project-1" @label="Project 1" />
      <F.Checkbox @value="project-2" @label="Project 2" />
      <F.Checkbox @value="project-3" @label="Project 3" />
    </D.FilterGroup>
    <D.FilterGroup @key="version" @text="Version" @type="single-select" as |F|>
      <F.Radio @value="1.0" @label="1.0" />
      <F.Radio @value="2.0" @label="2.0" />
      <F.Radio @value="3.0" @label="3.0" />
    </D.FilterGroup>
  </F.FiltersDropdown>
</Hds::FilterBar>

// example of filter data
const demoSearchFilters = {
  'search': {
    type: 'search',
    text: 'Search',
    data: {
      value: 'Lorem ipsum',
    },
  }
};

The search input's placeholder text is "Search" by default, but can be customized with the @searchPlaceholder argument.

<Hds::FilterBar
  @filters={{this.demoEmptyFilters}}
  @onFilter={{this.demoUpdateEmptyFilters}}
  @hasSearch={{true}}
  @searchPlaceholder="Search projects"
  as |F|
>
  <F.FiltersDropdown as |D|>
    <D.FilterGroup @key="project" @text="Project" @type="multi-select" as |F|>
      <F.Checkbox @value="project-1" @label="Project 1" />
      <F.Checkbox @value="project-2" @label="Project 2" />
      <F.Checkbox @value="project-3" @label="Project 3" />
    </D.FilterGroup>
    <D.FilterGroup @key="version" @text="Version" @type="single-select" as |F|>
      <F.Radio @value="1.0" @label="1.0" />
      <F.Radio @value="2.0" @label="2.0" />
      <F.Radio @value="3.0" @label="3.0" />
    </D.FilterGroup>
  </F.FiltersDropdown>
</Hds::FilterBar>

Bulk actions

The Filter Bar provides an ActionsDropdown contextual component that can be used for bulk actions to perform on a data set, or for other purposes. All contextual components from the Dropdown are yielded to the consumer except for the ToggleButton.

<Hds::FilterBar @filters={{this.demoEmptyFilters}} @onFilter={{this.demoUpdateEmptyFilters}} as |F|>
  <F.FiltersDropdown as |D|>
    <D.FilterGroup @key="project" @text="Project" @type="multi-select" as |F|>
      <F.Checkbox @value="project-1" @label="Project 1" />
      <F.Checkbox @value="project-2" @label="Project 2" />
      <F.Checkbox @value="project-3" @label="Project 3" />
    </D.FilterGroup>
    <D.FilterGroup @key="version" @text="Version" @type="single-select" as |F|>
      <F.Radio @value="1.0" @label="1.0" />
      <F.Radio @value="2.0" @label="2.0" />
      <F.Radio @value="3.0" @label="3.0" />
    </D.FilterGroup>
  </F.FiltersDropdown>
  <F.ActionsDropdown as |D|>
    <D.Interactive @icon="edit">Edit items</D.Interactive>
    <D.Interactive @icon="trash" @color="critical">Delete items</D.Interactive>
    <D.Separator />
    <D.Interactive @icon="check-circle">Select entire data set</D.Interactive>
    <D.Interactive @icon="rotate-ccw">Reset selection</D.Interactive>
  </F.ActionsDropdown>
</Hds::FilterBar>

The text of the ActionsDropdown defaults to "Actions", but can be customized with the @toggleButtonText argument. An icon can also be added with the @toggleButtonIcon argument.

<Hds::FilterBar @filters={{this.demoEmptyFilters}} @onFilter={{this.demoUpdateEmptyFilters}} as |F|>
  <F.FiltersDropdown as |D|>
    <D.FilterGroup @key="project" @text="Project" @type="multi-select" as |F|>
      <F.Checkbox @value="project-1" @label="Project 1" />
      <F.Checkbox @value="project-2" @label="Project 2" />
      <F.Checkbox @value="project-3" @label="Project 3" />
    </D.FilterGroup>
    <D.FilterGroup @key="version" @text="Version" @type="single-select" as |F|>
      <F.Radio @value="1.0" @label="1.0" />
      <F.Radio @value="2.0" @label="2.0" />
      <F.Radio @value="3.0" @label="3.0" />
    </D.FilterGroup>
  </F.FiltersDropdown>
  <F.ActionsDropdown @toggleButtonText="Item actions" @toggleButtonIcon="outline" as |D|>
    <D.Interactive @icon="edit">Edit items</D.Interactive>
    <D.Interactive @icon="trash" @color="critical">Delete items</D.Interactive>
    <D.Separator />
    <D.Interactive @icon="check-circle">Select entire data set</D.Interactive>
    <D.Interactive @icon="rotate-ccw">Reset selection</D.Interactive>
  </F.ActionsDropdown>
</Hds::FilterBar>

Generic content

For more customization of the functionality in the Filter Bar, an ActionsGeneric contextual component is provided that can be used to pass in any other content.

<Hds::FilterBar @filters={{this.demoEmptyFilters}} @onFilter={{this.demoUpdateEmptyFilters}} as |F|>
  <F.FiltersDropdown as |D|>
    <D.FilterGroup @key="project" @text="Project" @type="multi-select" as |F|>
      <F.Checkbox @value="project-1" @label="Project 1" />
      <F.Checkbox @value="project-2" @label="Project 2" />
      <F.Checkbox @value="project-3" @label="Project 3" />
    </D.FilterGroup>
    <D.FilterGroup @key="version" @text="Version" @type="single-select" as |F|>
      <F.Radio @value="1.0" @label="1.0" />
      <F.Radio @value="2.0" @label="2.0" />
      <F.Radio @value="3.0" @label="3.0" />
    </D.FilterGroup>
  </F.FiltersDropdown>
  <F.ActionsGeneric>
    <Doc::Placeholder @height="24" @width="auto" @text="Generic content" @background="#e4e4e4" />
  </F.ActionsGeneric>
</Hds::FilterBar>

Component API

FilterBar

Filter types

The shape of the object for the @filters argument. The shape differs depending on the type provided.

Single-select

The required structure of the data property when type is equal to single-select.

Multi-select

The required structure of the data property when type is equal to multi-select.

Numerical

The required structure of the data property when type is equal to numerical.

Date

The required structure of the data property when type is equal to date.

Time

The required structure of the data property when type is equal to time.

Datetime

The required structure of the data property when type is equal to datetime.

Generic

The required structure of the data property when type is equal to generic.

FilterBar::FiltersDropdown

The FilterBar::FiltersDropdown is yielded as the [F].FiltersDropdown contextual component.

FilterBar::FilterGroup

The FilterBar::FilterGroup is yielded as the [D].FilterGroup contextual component in the FilterBar::FiltersDropdown.

FilterBar::FilterGroup::Radio

The FilterBar::FilterGroup::Radio is yielded as the [F].Radio contextual component in the FilterBar::FilterGroup.

FilterBar::FilterGroup::Checkbox

The FilterBar::FilterGroup::Checkbox is yielded as the [F].Checkbox contextual component in the FilterBar::FilterGroup.

FilterBar::ActionsGeneric

The FilterBar::ActionsGeneric is yielded as the [F].ActionsGeneric contextual component.

FilterBar::ActionsDropdown

The FilterBar::ActionsDropdown is yielded as the [F].ActionsDropdown contextual component.

Anatomy

Filter Bar

Filter Dropdown

The Filter Dropdown anatomy is dependent on the filter method:

• Selection: multi-selection using checkboxes or single selection using radios.
• Input: numerical, date, time, datetime values, or a range between a start and end value.

Filter value selection

Filter value input

Filter value range input

When applying a filter value via an input, if Between is selected in the operator list, the input fields will be broken into a start value and an end value.

Custom filtering

The Filter Dropdown supports custom filtering by passing elements to a generic yielded block.

Value input operators

Available operators are dependent on the type of data being filtered upon, but are generally either numerical, or date/time based.

States

Parameter List Item

Conformance Rating

When used as recommended, there should not be any WCAG conformance issues with this component. Consumers are responsible for the conformance of any content in a block yield.

Keyboard navigation

Accessing the dropdown menu

Focus on the dropdown toggle button.

Open the dropdown menu.

Focus on the selected tab.

Move between tabs.

Select a tab.

Move to the selected tab content.

Close the dropdown.

Executing a search

Focus the search input.

Enter a search term into the input.

Execute the search.

Applicable WCAG Success Criteria

This section is for reference only. This component intends to conform to the following WCAG Success Criteria:

Support

If any accessibility issues have been found within this component, let us know by submitting an issue.

6.1.0

Added support for an array of values for the generic filter type data

Added @onClear argument to FilterGroup contextual component

Added @onFocusOut argument to the FiltersDropdown to help manage focus for dynamic dropdown content and prevent the dropdown from closing when content changes

Converted component to gts format.

6.0.0

Added FilterBar component and related sub-components
